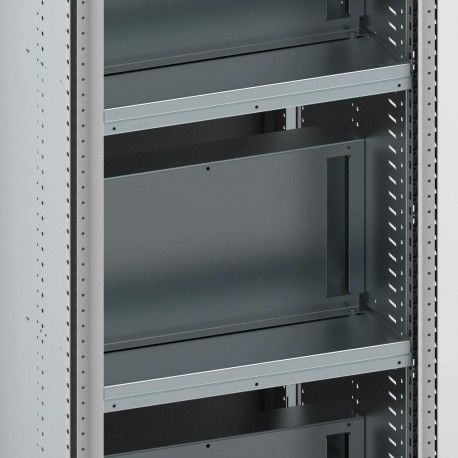

DPP02506R5 ELDON Partial panel, 250x600 DPP02506R5
DPP02506R5
02506
ELDON
1 Pcs.
Partial panel, 250x600 DPP02506R5
Pane partial, 250x600, steel sheet
Partial panel, 250x600, Mild steel
Automation > Front plate (switchgear cabinet)
Power and distribution
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eldon DPP02506R5 is a partial panel designed for free-standing industrial enclosures to mount internal equipment and organize component layouts. Partial panels offer flexible mounting space for control devices within larger distribution frames.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 250mm
- Width: 600mm
- Depth: 17mm
- Enclosure Material: Mild Steel
- Product Family: Free-Standing
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 1.75mm
- UPC: 783510471873
- EAN: 8713574122819
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 600.00 mm
- Height (EF000040): 250.00 mm
More info
▲Features
- Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
- Material: 1.75 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 54.
- Pack quantity: 1 panel with mounting accessories.
- Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
| Atributo del producto | Valor |
|---|---|
| Height | 250mm |
| Width | 600mm |
| Depth | 17mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.75mm |
| UPC | 783510471873 |
| EAN | 8713574122819 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
