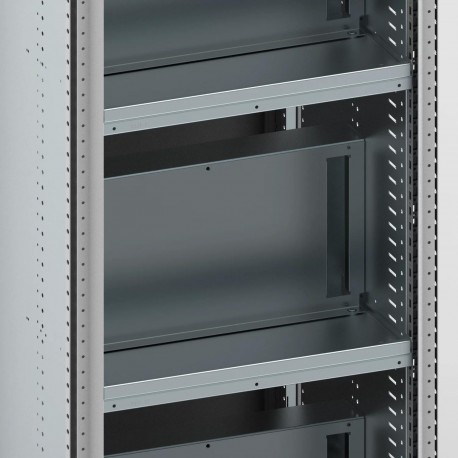

ELDON DPP02006R5 DPP02006R5 ELDON Partial panel, 200x600 DPP02006R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DPP02006R5 ELDON Partial panel, 200x600 DPP02006R5

DPP02006R5

02006

ELDON

1 Pcs.

Partial panel, 200x600 DPP02006R5 Pane partial, 200x600, steel sheet Partial panel, 200x600, Mild steel

Automation > Front plate (switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eldon partial panel DPP02006R5 acts as a modular internal barrier or mounting plate for free-standing electrical enclosures. Mild steel construction finished with a light gray powder coat ensures long-lasting durability in demanding industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 200 mm
  • Width: 600 mm
  • Depth: 17 mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.75 mm
  • UPC: 783510471774
  • EAN: 8713574122833
  • Standard Packaging Quantity: 1.0000
  • Packing Quantity: 1.0000
  • Width (EF000008): 600.00 mm
  • Height (EF000040): 200.00 mm

More info

▲

Features

  • Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 panel with mounting accessories.
  • Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
Atributo del producto Valor
Height200 mm
Width600 mm
Depth17 mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.75 mm
UPC783510471774
EAN8713574122833
Standard Packaging Quantity1.0000
Packing Quantity1.0000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
