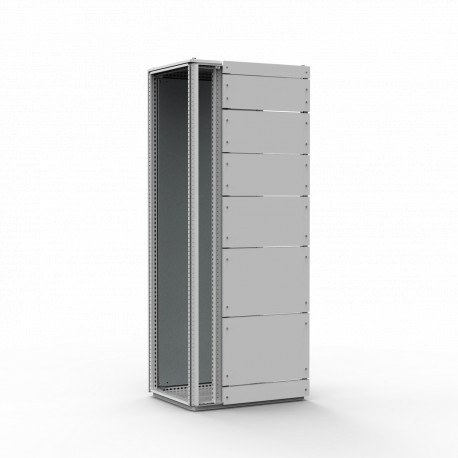

ELDON DPP02004R5 DPP02004R5 ELDON Partial panel, 200x400 DPP02004R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DPP02004R5 ELDON Partial panel, 200x400 DPP02004R5

DPP02004R5

02004

ELDON

1 Pcs.

Partial panel, 200x400 DPP02004R5 Pane partial, 200x400, steel sheet Partial panel, 200x400, Mild steel

Automation > Front plate (switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Partial panel, 200x400 DPP02004R5 from Eldon serves as a modular internal partitioning element used to section off specific areas within electrical enclosures. Partial panels assist in creating dedicated compartments for component mounting and wiring organization.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 400.00 mm
  • Height (EF000040): 200.00 mm
  • Suitable for enclosure building width (EF000326): 400.00 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated

More info

▲

Features

  • Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 panel with mounting accessories.
  • Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
