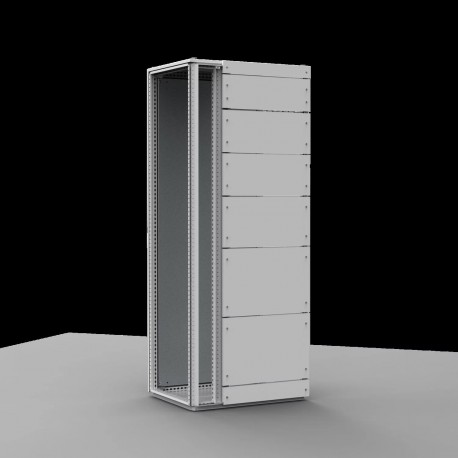

ELDON DPP01508R5 DPP01508R5 ELDON Partial panel, 150x800 DPP01508R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DPP01508R5 ELDON Partial panel, 150x800 DPP01508R5

DPP01508R5

01508

ELDON

1 Pcs.

Partial panel, 150x800 DPP01508R5 Pane partial, 150x800, steel sheet Partial panel, 150x800, Mild steel

Automation > Front plate (switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a partial panel for free-standing electrical assemblies, this Eldon DPP01508R5 component provides structural division and modular blanking space inside industrial enclosures. Partial panels are widely used across electrical distribution setups to section off unused cabinet areas, mount DIN-rail components, and maintain organized, safe structural layouts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height: 150mm
  • Width: 800mm
  • Depth: 17mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.75mm
  • UPC: 783510471712
  • EAN: 8713574184473
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Width (EF000008): 800.00 mm
  • Height (EF000040): 150.00 mm

More info

▲

Features

  • Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 panel with mounting accessories.
  • Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
Atributo del producto Valor
Height150mm
Width800mm
Depth17mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.75mm
UPC783510471712
EAN8713574184473
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
