View larger
Images are for illustrative purposes only. Please refer to data sheet for details

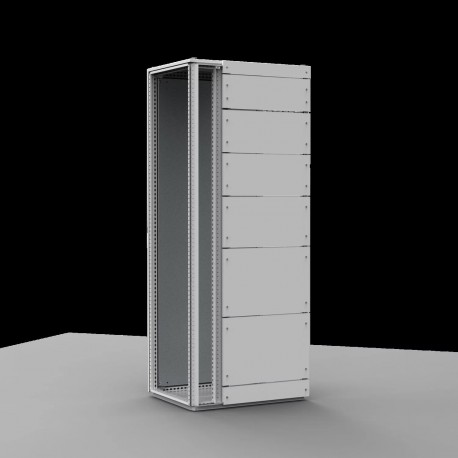

DPP01008R5 ELDON Partial panel, 100x800 DPP01008R5
DPP01008R5
01008
ELDON
1 Pcs.
Partial panel, 100x800 DPP01008R5
Pane partial, 100x800, steel sheet
Partial panel, 100x800, Mild steel
Automation > Front plate (switchgear cabinet)
Power and distribution
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
- Material: 1.75 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 44.
- Pack quantity: 1 panel with mounting accessories.
- Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
| Atributo del producto | Valor |
|---|---|
| Height | 100 mm |
| Width | 800 mm |
| Depth | 17 mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.75 mm |
| UPC | 783510471620 |
| EAN | 8713574173453 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 800.00 mm |
| Height (EF000040) | 100.00 mm |
| Suitable for enclosure building width (EF000326) | 800.00 mm |
| Suitable for enclosure building height (EF009583) | None mm |
| Number of height units (EF003561) | |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coating |
