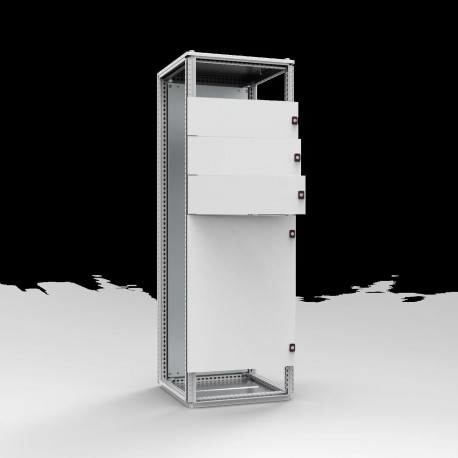

DP08008R5 ELDON Partial door, 800x800 DP08008R5
DP08008R5
08008
ELDON
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Power and distribution
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Partial door provides compartmentalized access to specific sections of free-standing industrial enclosures, allowing operators to service targeted components without exposing the entire panel. Manufactured by Eldon, this mild steel panel features a durable light grey powder-coated finish.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 800mm
- Width: 800mm
- Depth: 17mm
- Enclosure Material: Mild Steel
- Product Family: Free-Standing
- Material: Mild Steel
- Finish: Powder Coded
- Color: Light Gray
- Color Code: RAL 7035
- UPC: 783510470357
- EAN: 8713574123113
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): None mm
- Height (EF000040): None mm
- Depth (EF000049): None mm
More info
▲Features
- Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CHDK. Equipped with double-bit 3 mm lock (1 lock up to 400 mm, over 400 mm height 2 locks).
- Material: 1.75 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 44.
- Pack quantity: 1 door with hinges, locks and mounting accessories.
- Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
| Atributo del producto | Valor |
|---|---|
| Height | 800mm |
| Width | 800mm |
| Depth | 17mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| UPC | 783510470357 |
| EAN | 8713574123113 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
