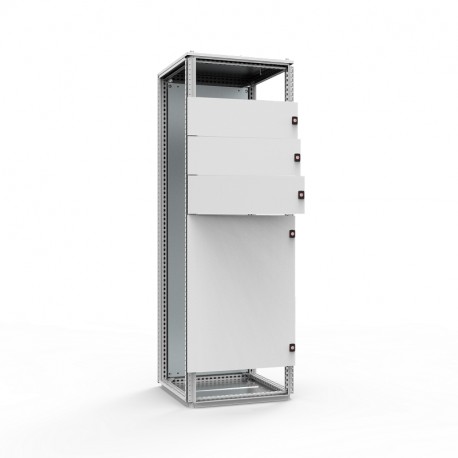

ELDON DP06006R5 DP06006R5 ELDON Partial door, 600x600 DP06006R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DP06006R5 ELDON Partial door, 600x600 DP06006R5

DP06006R5

06006

ELDON

1 Pcs.

Partial door, 600x600 DP06006R5 Door partial, 600x600, steel sheet, lock double warded of 3 mm, IP44 Partial door, 600x600, Mild steel, 3mm double bit lock, IP44

Automation > Door/operating panel (switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eldon DP06006R5 partial door is a modular enclosure component designed to segment large freestanding electrical cabinets into manageable access zones. Partial doors help isolate specific operational compartments while maintaining the overall enclosure rating.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 600 mm
  • Width: 600 mm
  • Depth: 17 mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • UPC: 783510470241
  • EAN: 8713574123243
  • Standard Packaging Quantity: 1.0000
  • Packing Quantity: 1.0000
  • Width (EF000008): None mm
  • Height (EF000040): None mm
  • Depth (EF000049): None mm

More info

▲

Features

  • Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CHDK. Equipped with double-bit 3 mm lock (1 lock up to 400 mm, over 400 mm height 2 locks).
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 44.
  • Pack quantity: 1 door with hinges, locks and mounting accessories.
  • Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
Atributo del producto Valor
Height600 mm
Width600 mm
Depth17 mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
UPC783510470241
EAN8713574123243
Standard Packaging Quantity1.0000
Packing Quantity1.0000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
