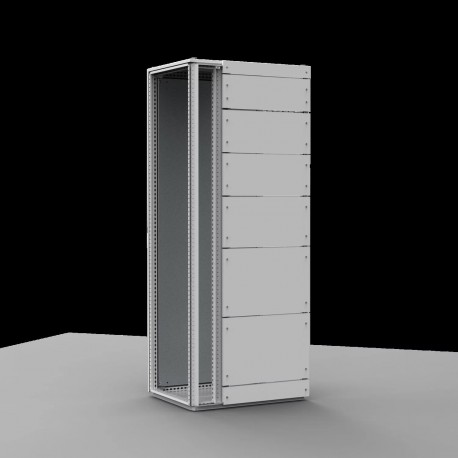

ELDON DP01504R5 DP01504R5 ELDON Partial door, 150x400 DP01504R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DP01504R5 ELDON Partial door, 150x400 DP01504R5

DP01504R5

01504

ELDON

1 Pcs.

Partial door, 150x400 DP01504R5 Door partial, 150x400, steel sheet, lock double warded of 3 mm, IP44 Partial door, 150x400, Mild steel, 3mm double bit lock, IP44

Automation > Door/operating panel (switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The DP01504R5 ELDON Partial door, 150x400 DP01504R5 functions as a compartmental protective door designed to isolate specific sections within larger free-standing electrical cabinets. Partial doors are commonly implemented in modular switchgear configurations to allow targeted access to individual tier levels while keeping other high-voltage zones safely covered. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 150mm
  • Width: 400mm
  • Depth: 17mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • UPC: 783510469672
  • EAN: 8713574123052
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Model (EF000010): Protective door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 400.00 mm

More info

▲

Features

  • Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CHDK. Equipped with double-bit 3 mm lock (1 lock up to 400 mm, over 400 mm height 2 locks).
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 44.
  • Pack quantity: 1 door with hinges, locks and mounting accessories.
  • Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
Atributo del producto Valor
Height150mm
Width400mm
Depth17mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
UPC783510469672
EAN8713574123052
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
