View larger
Images are for illustrative purposes only. Please refer to data sheet for details

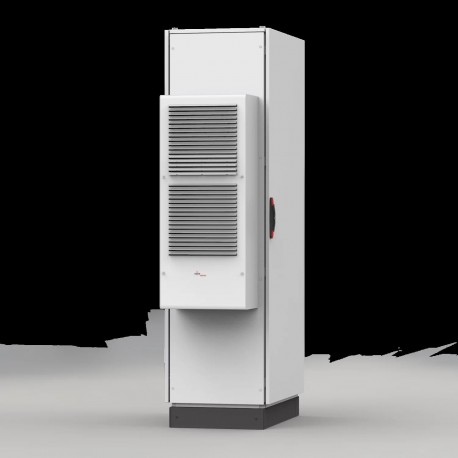

CUON08502SS ELDON Outdoor cooling unit 850W CUON08502SS
CUON08502SS
08502
ELDON
1 Pcs.
Outdoor cooling unit 850W CUON08502SS
Eq. air-cond. exter. 850 W, 230 V, stainless Steel, IP55, NEMA 4X
Outdoor cooling unit 850W, 230V, Stainless steel, IP55, NEMA 4X
Automation > Air conditioner (switchgear cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Outdoor vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
- Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing
- Smart energy management reduces the cooling units energy consumption by up to 23%
- The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
- The smart energy management and ease of installation will reduce both operational and installation costs
- Stainless steel outdoor cooling units are available for harsh environments
- Stainless steel outdoor cooling units are available for harsh environments
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
- Once installed, the door switch will turn the cooling unit off, once the door is opened
| Atributo del producto | Valor |
|---|---|
| Height | 634mm |
| Width | 313mm |
| Depth | 235mm |
| Number of Phases | 1 |
| Material | Stainless Steel |
| Finish | Brushed |
| Color Code | RAL 7035 |
| Cooling Capacity, L35L50 | 620 – 700W |
| Cooling Capacity, L35L35 | 850 – 900W |
| Voltage Rating | 230V min |
| Frequency | 50/60 HzHz |
| UPC | 783510461874 |
| EAN | 8713574212077 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Operating voltage AC 50 Hz (EF008206) | 230.00 V |
| Operating voltage AC 60 Hz (EF008207) | 230.00 V |
| Voltage type (EF000187) | AC |
| With temperature control (EF000745) | Yes |
| Function master/slave (EF007183) | No |
| Width (EF000008) | 314.00 mm |
| Height (EF000040) | 634.00 mm |
| Depth (EF000049) | 235.00 mm |
