View larger

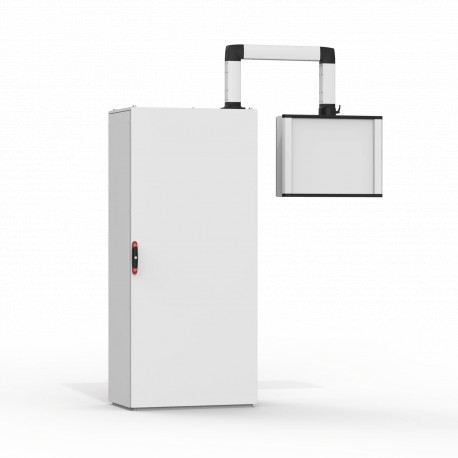

OICE606021 ELDON HMI, 600x600x210, no MP, mild steel, IP55
OICE606021
606021
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Console Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eldon part number OICE606021 is an HMI enclosure engineered to protect operator interface terminals and control displays in industrial workspaces. HMI consoles provide ergonomic housing for touchscreens, pushbuttons, and industrial computers on factory floors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 600mm
- Width: 600mm
- Depth: 210mm
- Weight: 11.3kg
- Material: Aluminum; Aluminum
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- UPC: 783510524241
- EAN: 8713574229624
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 600.00 mm
- Height (EF000040): 600.00 mm
- Depth (EF000049): 210.00 mm
- Material (EF002169): Steel
More info
▲Features
- Material: Body and door are manufactured from 1.2 mm mild steel, front cover and handles manufactured from aluminium.
- Body: Folded and seam welded, with maximum opening. The front fitted with an aluminium front panel. Handling grips mounted to front, left and right edges.
- Rear door: Surface mounted, with 130° opening. Concealed removable hinges, with captive pin. Hinges can be mounted to allow left or right hand opening. Door profiles MMDP are available as an accessory.
- Lock: Customised lock, with double grip for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts and locks are available as an accessory.
- Protection: IP 55, IK 10.
- Finish: RAL 7035 structured powder coating. Top bottom profile RAL7016.
- Delivery: Enclosure with aluminium front panel, rear door, plastic double-bit 3 mm key and mounting accessories.
| Atributo del producto | Valor |
|---|---|
| Height | 600mm |
| Width | 600mm |
| Depth | 210mm |
| Weight | 11.3kg |
| Material | Aluminum; Aluminum |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| UPC | 783510524241 |
| EAN | 8713574229624 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
