View larger
Images are for illustrative purposes only. Please refer to data sheet for details

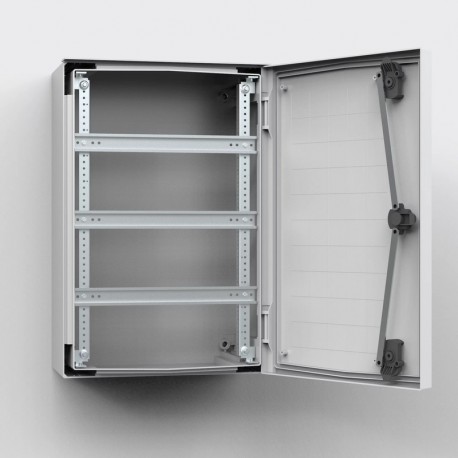

UMF10805 ELDON Mounting frame, 1035x835 UMF10805
UMF10805
10805
ELDON
1 Pcs.
Mounting frame, 1035x835 UMF10805
Mounting frame, 1035x835
Automation > Component for installation (switchgear cabinet)
Polyester Uniplast enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: For easy mounting of DIN-rail components. The DIN-rails are adjustable in height.
- Material: Galvanized steel.
- Delivery: Vertical profiles, reinforced DIN-rails, supporting brackets and mounting accessories.
- Adjustable DIN rail frame for compact polyester wall mounted enclosures
- Modular components can be pre-mounted onto the chassis before being fitted into the enclosure
- The frame allows the components to be mounted and adjusted to the correct depth
- The frame allows panel builders to quickly install modular components or large equipment as the frame can be adjusted in depth
| Atributo del producto | Valor |
|---|---|
| Height | 1035mm |
| Width | 835mm |
| Module Quantity | 180 |
| DIN Rail | 5 |
| Material | Galvanized Steel |
| Finish | Galvanized |
| Enclosure Material | Polyester |
| UPC | 783510531171 |
| EAN | 8713574100657 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Mounting rail |
| Suitable for enclosure building width (EF000326) | 835.00 mm |
| Suitable for enclosure building height (EF009583) | 1.04 mm |
| Suitable for enclosure building depth (EF000327) | None mm |
| Width (EF000008) | 835.00 mm |
| Height (EF000040) | 1.04 mm |
| Depth (EF000049) | None mm |
| Max. load capacity (EF000258) | None kg |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7.04 |
