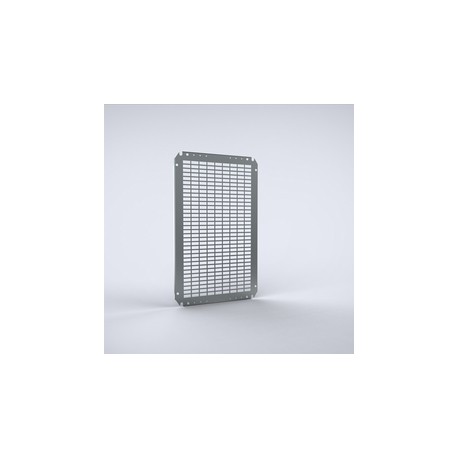

ELDON AC10060R5 AC10060R5 ELDON Modular chassis, 1000x600 AC10060R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AC10060R5 ELDON Modular chassis, 1000x600 AC10060R5

AC10060R5

10060

ELDON

1 Pcs.

Modular chassis, 1000x600 AC10060R5 Modular chassis, 1000x600, 189 modules, 7 rows Modular Chassis, AC, 980x560x98mm, Light Gray, Mild Steel

Automation > Profile (switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

AC10060R5 ELDON Modular chassis, 1000x600 AC10060R5 provides a comprehensive internal framework designed to organize and mount modular electrical components securely inside industrial enclosures. This powder-coated steel chassis system optimizes internal space for complex wiring and control device arrangements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 1000mm
  • Width: 600mm
  • Depth: 98mm
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.2mm
  • Weight: 15.1kg
  • Enclosure Material: Mild Steel
  • Module Quantity: 189
  • Row Quantity: 7
  • UPC: 783510113841
  • EAN: 8713574188464
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1

More info

▲

Features

  • Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.
  • Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
  • Mounting requirements: To be assembled on MAS and ASR enclosures.
Atributo del producto Valor
Height1000mm
Width600mm
Depth98mm
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.2mm
Weight15.1kg
Enclosure MaterialMild Steel
Module Quantity189
Row Quantity7
UPC783510113841
EAN8713574188464
Standard Packaging Quantity1
Packing Quantity1
