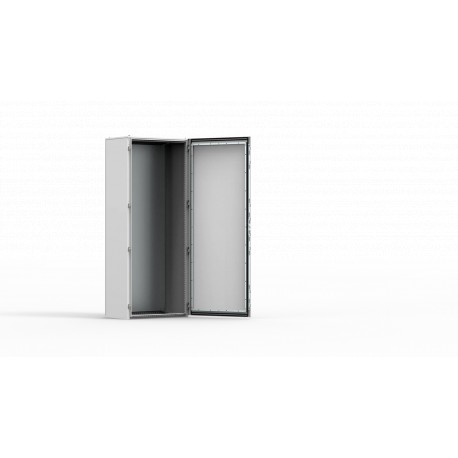

MKS16063PER5 ELDON Self-supporting, 1600x600x300, compact, 1-door, no MP, mild steel, IP66
MKS16063PER5
16063
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructed for demanding industrial environments, the Eldon compact self-supporting enclosure, part number MKS16063PER5, protects sensitive electrical gear from external elements. Compact freestanding cabinets provide a secure physical boundary for localized motor controls, relays, and automation sub-assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 1600mm
- Width (W): 600mm
- Depth (D): 300mm
- Mounting Plate Included: No
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.35mm
- Door Thickness: 2mm
- Weight: 82kg
- UPC: 783510504489
- EAN: 8713574226630
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 600.00 mm
More info
▲Features
- Material: Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel. Door: 2 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Body: Four times folded and seam-welded frame. Integrated depth profiles with hole pattern, allowing mounting plate adjustment in depth.
- Door: Mounted with four hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55 TYPE 12 IK 10.
- Delivery: Body with fitted door, rear panel, roof panel, bottom plates, mounting plate and door frame (except PE version). Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 1600mm |
| Width (W) | 600mm |
| Depth (D) | 300mm |
| Mounting Plate Included | No |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.35mm |
| Door Thickness | 2mm |
| Weight | 82kg |
| UPC | 783510504489 |
| EAN | 8713574226630 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
