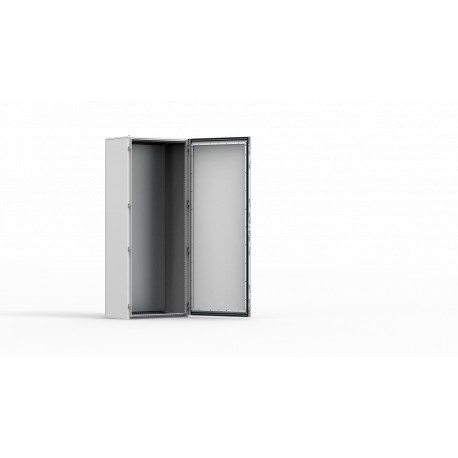

MKS14063R5 ELDON Self-supporting, 1400x600x300, compact, 1-door, with MP, mild steel, IP66
MKS14063R5
14063
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Self-supporting compact enclosure manufactured by Eldon under part number MKS14063R5 is utilized for housing sensitive electrical automation hardware and industrial control instruments securely. These standalone cabinets provide a robust physical barrier against dust, moisture, and accidental contact in factory settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 1400 mm
- Width: 600 mm
- Depth: 300 mm
- Mounting Plate Included: Yes
- Panel Size: 1294 x 494 mm
- Max Mounting Depth: 259 mm
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.35 mm
- Door Thickness: 2 mm
- Weight: 80 kg
- UPC: 783510504229
- EAN: 8713574226395
- Standard Packaging Quantity: 1.0000
More info
▲Features
- Material: Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel. Door: 2 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Body: Four times folded and seam-welded frame. Integrated depth profiles with hole pattern, allowing mounting plate adjustment in depth.
- Door: Mounted with four hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55 TYPE 12 IK 10.
- Delivery: Body with fitted door, rear panel, roof panel, bottom plates, mounting plate and door frame (except PE version). Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Height | 1400 mm |
| Width | 600 mm |
| Depth | 300 mm |
| Mounting Plate Included | Yes |
| Panel Size | 1294 x 494 mm |
| Max Mounting Depth | 259 mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.35 mm |
| Door Thickness | 2 mm |
| Weight | 80 kg |
| UPC | 783510504229 |
| EAN | 8713574226395 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
