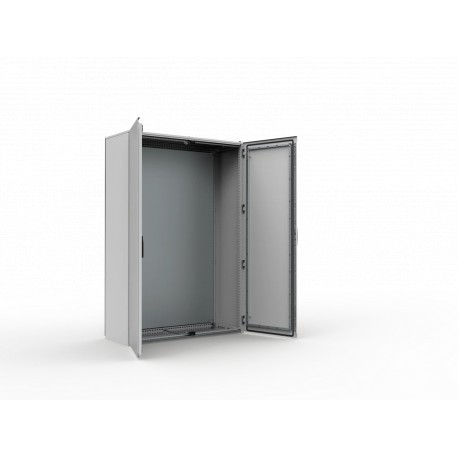

MKD14104PER5 ELDON Self-supporting, 1400x1000x400, compact, 2-door, no MP, mild steel, IP55
MKD14104PER5
14104
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eldon MKD14104PER5 self-supporting compact enclosure provides dual-door access for organizing automation controllers and industrial electrical equipment. Compact floor-standing cabinets of this design optimize space while safeguarding internal hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 1.00 mm
- Height (EF000040): 1.40 mm
- Depth (EF000049): 400.00 mm
- Material (EF002169): Steel
- Surface finishing (EF006569): Powder coated
- Colour (EF000007): Grey
- RAL-number (EF000116): 7.04
- With mounting plate (EF000118): No
- Mounting plate depth-adjustable (EF006054): Yes
- Pole fastening (EF009582): No
- Number of doors (EF000122): 2.00
- Number of locks (EF000123): 1.00
- Pitched roof (EF009278): No
- EMC-version (EF001062): No
- With glazed door (EF001089): No
- With ventilation door (EF006279): No
More info
▲Features
- Material: Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel. Door: 2 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Body: Four times folded and seam-welded frame. Integrated depth profiles with hole pattern, allowing mounting plate adjustment in depth.
- Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Standard doors cannot be reversed. Separate doors to be ordered for left hand door locking.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels on 1600 mm wide enclosures.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the secondary door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55 TYPE 12 IK 10.
- Delivery: Body with fitted door, rear panel, roof panel, bottom plates, mounting plate (except in PE version) and door frame. Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
- All panels are grounded through their fittings and equipped with an independent grounding stem
