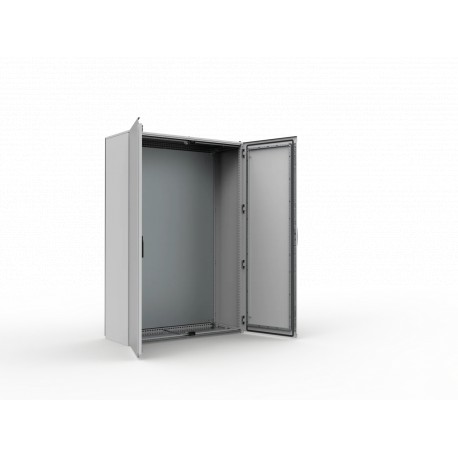

ELDON MKD14103PER5 MKD14103PER5 ELDON Self-supporting, 1400x1000x300, compact, 2-door, no MP, mild steel, IP55 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKD14103PER5 ELDON Self-supporting, 1400x1000x300, compact, 2-door, no MP, mild steel, IP55

MKD14103PER5

14103

ELDON

1 Pcs.

Self-supporting, 1400x1000x300, compact, 2-door, no MP, mild steel, IP55 Floor stand., 1400x1000x300, Compact encl., 2-door, no MP, mild steel, IP55

Automation > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Features

  • Material: Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel. Door: 2 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Body: Four times folded and seam-welded frame. Integrated depth profiles with hole pattern, allowing mounting plate adjustment in depth.
  • Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Standard doors cannot be reversed. Separate doors to be ordered for left hand door locking.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels on 1600 mm wide enclosures.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the secondary door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: Consists of three pieces.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 55 TYPE 12 IK 10.
  • Delivery: Body with fitted door, rear panel, roof panel, bottom plates, mounting plate (except in PE version) and door frame. Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
  • All panels are grounded through their fittings and equipped with an independent grounding stem

ETIM for MKD14103PER5 Cabinets and enclosures (EC000261)
Feature Name Feature Value
Width (EF000008) 1.00 mm
Height (EF000040) 1.40 mm
Depth (EF000049) 300.00 mm
Material (EF002169) Steel
Surface finishing (EF006569) Powder coated
Colour (EF000007) Grey
RAL-number (EF000116) 7.04
With mounting plate (EF000118) No
Mounting plate depth-adjustable (EF006054) Yes
Pole fastening (EF009582) No
Number of doors (EF000122) 2.00
Number of locks (EF000123) 1.00
Pitched roof (EF009278) No
EMC-version (EF001062) No
With glazed door (EF001089) No
With ventilation door (EF006279) No
With rear door (EF007381) No
Impact strength (EF004293) IK10
Degree of protection (IP) (EF005474) IP55
Degree of protection (NEMA) (EF011959) 12
