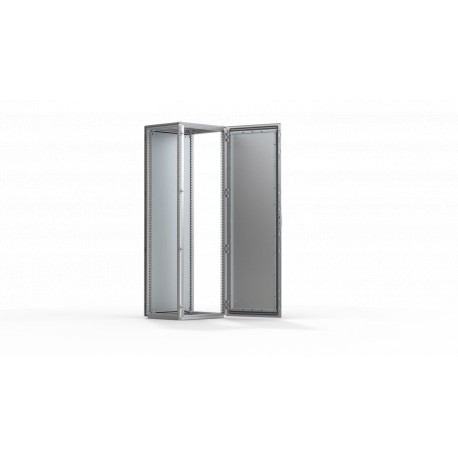

MCSS200810PRD25 ELDON Self-supporting, 2000x800x1000, Combinable, 1 door, without MP, ac. stainless steel 31..
MCSS200810PRD25
200810
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
MCSS200810PRD25 Eldon self-supporting combinable stainless steel enclosure offers heavy-duty protection for industrial automation hardware installed in corrosive or washdown environments. Such standalone floor cabinets are commonly deployed in chemical, marine, and food processing facilities to maintain high hygiene and corrosion resistance standards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 800.00 mm
- Height (EF000040): 2.00 mm
- Depth (EF000049): 1.00 mm
- Material (EF002169): Stainless steel
- Material quality (EF001257): Stainless steel 316
- Surface finishing (EF006569): Untreated
- Colour (EF000007): Stainless steel
- With mounting plate (EF000118): Yes
- Mounting plate depth-adjustable (EF006054): Yes
- Pole fastening (EF009582): No
- Number of doors (EF000122): 2.00
- Number of locks (EF000123): 2.00
- Pitched roof (EF009278): No
- EMC-version (EF001062): No
- With glazed door (EF001089): No
- With ventilation door (EF006279): No
More info
▲Features
- Material: AISI 316L pre-grained stainless steel. Frame: 1.5 mm. Door: 2 or 2.5 mm. Rear, roof and bottom plate: 2 or 2.5 mm. Mounting plate: 3 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
- Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear: Rear panel fitted by M6 tork screw. Rear door instead of rear panel. RD version comes with rear door instead of rear panel.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette locking system with lock catcher made in AISI 316L and additional locks in top and bottom for enclosures with W=1000 mm. Swing handle SS 316L with half cylinder keyed EK 333.
- Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing or two pieces for the rear door version.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is delivered attached on the outside of the enclosure packaging. For Enclosure with rear doors, two mounting plates mounted back to back with MPBB06.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: 240s pre-grained stainless steel (0,5 microns average).
- Protection: Complies with IP 66 TYPE 4X, 12 IK 10. if are used with SPMSXXXXOG.
- Approvals: CE, EAC, DNV-GL, GOST, Kema Keur, Lloyds shipping, cULus_listed.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. All packing material is recyclable.
