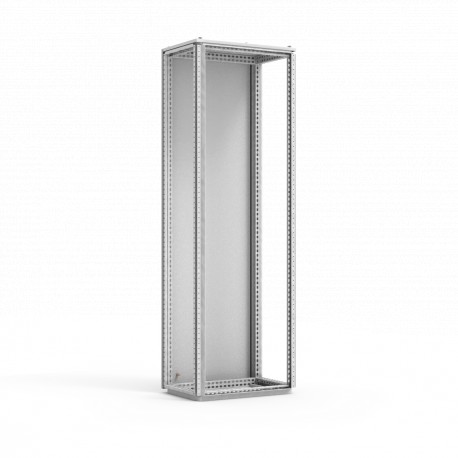

MCSL18086R5 ELDON FS Sw/gear enc. 1800x800x600
MCSL18086R5
18086
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Power and distribution
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eldon MCSL18086R5 floor-standing switchgear enclosure houses high-capacity industrial control panels, drives, and power distribution electronics. Heavy-duty freestanding cabinets protect internal electrical hardware from harsh plant floor environments while offering secure modular expansion options. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 1800mm
- Width: 800mm
- Depth: 600mm
- Rack Units: 32U
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 1.5mm
- UPC: 783510497477
- EAN: 8713574126961
- Standard Packaging Quantity: 1
- Packing Quantity: 1
More info
▲Features
- Material: Frame: 1.5 painted steel. Rear and roof panels: 1.5 mm painted steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660. Including integrated external hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Roof panel: Removable.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: IP 44, 55 TYPE 12 IK 10, depending of doors configuration.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame, rear and roof panel. Delivery also includes earthing bolts. Delivered on a pallet with identical width of the enclosure to allow suiting without removal. All packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Height | 1800mm |
| Width | 800mm |
| Depth | 600mm |
| Rack Units | 32U |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5mm |
| UPC | 783510497477 |
| EAN | 8713574126961 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
