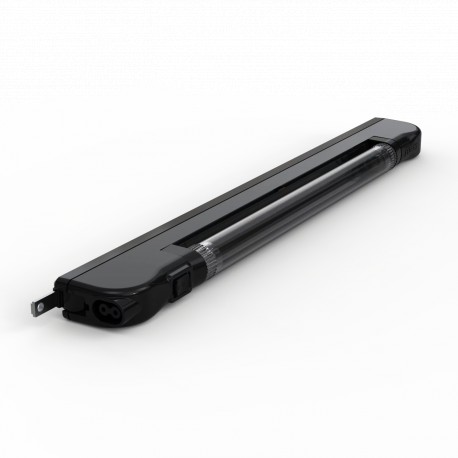

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
TLCL87035-24 ELDON LED light 7,2W 24V grey TLCL87035-24
TLCL87035-24
8703524
ELDON
1 Pcs.
LED light 7,2W 24V grey TLCL87035-24
LED 7.2 W/24 V, grey
LED light 7,2W 24V grey
Automation > Luminaire (switchgear cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: Lighting system with a compact design, suitable for all types of enclosures or racks. It has three possible fixing possibilities: magnetically, screw mounting with a variable distance between holes and/or snap-into 19” rack. This lamp has a very long service life (around 50000 h.) due to the use of LED technology. The body of the lighting system is made of PC-ABS. An integrated connector allows the activation of the lamp by a door switch by using the TLCS product without performing any additional wiring. The led-tube is made of PC and the colour of the light is white.
- Lamp type: High Power LEDs.
- Luminosity: 945 Lm.
- Power consumption: 7.2 W.
- Operating temperature: -20 ºC to +50 ºC.
- Dimensions: 448 x 54.5 x 26 mm.
- Connections: 2x0.75 mm² open end cable (1.5 m long), 2x0.75 mm² mini-connector for door switch use.
- Approvals: CE, EAC.
- Delivery: 1 light with fix mounted connection cable, integrated magnets and mounting screws.
- Luminosity: 945 Lm
| Atributo del producto | Valor |
|---|---|
| Height | 26mm |
| Width | 448mm |
| Depth | 54.5mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Voltage DC | 24V |
| Material | Plastic |
| Finish | Textured |
| UPC | 783510529772 |
| EAN | 8713574170728 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Lamp power (EF000035) | 6.00 W |
| With socket outlet (EF000289) | No |
| Length (EF001438) | 448.00 mm |
| With light sensor (EF001203) | No |
| Material (EF002169) | Plastic |
| With on/off switch (EF000488) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
