TLCL89005-24 ELDON LED light 7,2W 24V black TLCL89005-24
TLCL89005-24
8900524
ELDON
1 Pcs.
LED light 7,2W 24V black TLCL89005-24
LED 7.2 W/24 V black
LED light 7,2W 24V black
Automation > Luminaire (switchgear cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

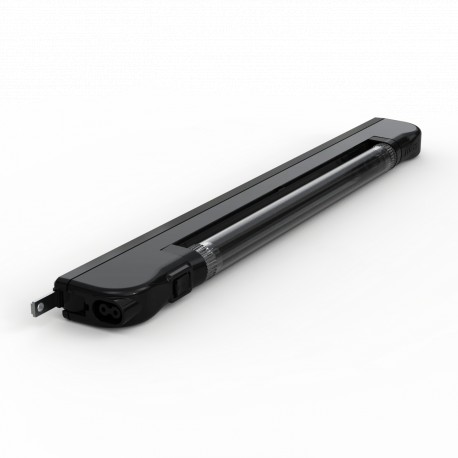

An Eldon LED light (TLCL89005-24) mounts inside electrical enclosures to deliver bright, energy-efficient workspace illumination for maintenance personnel working on complex automation equipment.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Lamp power (EF000035): 6.00 W
- With socket outlet (EF000289): No
- Length (EF001438): 448.00 mm
- With light sensor (EF001203): No
- Material (EF002169): Plastic
- With on/off switch (EF000488): Yes
- Degree of protection (IP) (EF005474): IP20
More info
▲Features
- Description: Lighting system with a compact design, suitable for all types of enclosures or racks. It has three possible fixing possibilities: magnetically, screw mounting with a variable distance between holes and/or snap-into 19” rack. This lamp has a very long service life (around 50000 h.) due to the use of LED technology. The body of the lighting system is made of PC-ABS. An integrated connector allows the activation of the lamp by a door switch by using the TLCS product without performing any additional wiring. The led-tube is made of PC and the colour of the light is white.
- Lamp type: High Power LEDs.
- Luminosity: 945 Lm.
- Power consumption: 7.2 W.
- Operating temperature: -20 ºC to +50 ºC.
- Dimensions: 448 x 54.5 x 26 mm.
- Connections: 2x0.75 mm² open end cable (1.5 m long), 2x0.75 mm² mini-connector for door switch use.
- Approvals: CE, EAC.
- Delivery: 1 light with fix mounted connection cable, integrated magnets and mounting screws.
- Luminosity: 945 Lm
