View larger
Images are for illustrative purposes only. Please refer to data sheet for details

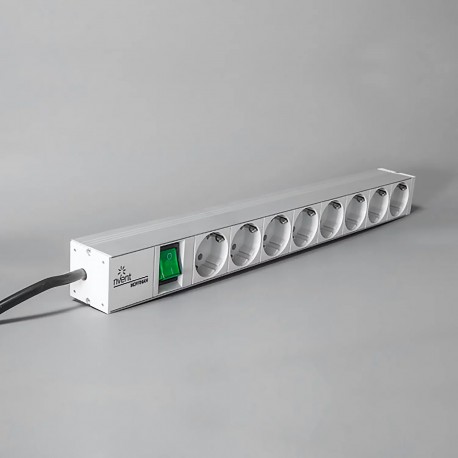

HPDS119108 ELDON Power dist. unit 8x250V/16A HPDS119108
HPDS119108
119108
ELDON
1 Pcs.
Power dist. unit 8x250V/16A HPDS119108
Distrib. energy 8x250 V/16 A
Power distribution unit 8x250V/16A
Automation > Multiple socket
Steel Floor Standing Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: With or without ON/OFF switch. Including 2 m cable with right angle plug. 19" assembly brackets can be turned by 90º. Outlets 35º turned.
- Material: Aluminium extrusion, anodized. Outlets polyamide 6.6, RAL 7035. Nickel plated earth contacts.
- Cable with angle plug: 2 m x 1.5 mm², Schuko.
- Rated power: 16 A / 3600 W.
- Earthing: Double earthing.
- Delivery: 1 complete PDU with power cable and 19" assembly brackets and fixing kit.
| Atributo del producto | Valor |
|---|---|
| Height | 60mm |
| Width | 430mm |
| Depth | 28mm |
| On/Off Switch Included | Yes |
| Socket Quantity | 8 |
| Socket Type | SCHUKO 250 V / 16 A |
| Over Voltage Protection | No |
| Material | Aluminum |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Enclosure Material | Mild Steel |
| UPC | 783510483784 |
| EAN | 8713574107540 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Housing shape (EF000138) | Rectangular |
| Number of socket outlets CEE 7/16 (EURO) (EF006620) | 0.00 |
| Number of cold device socket outlets (EF006580) | 0.00 |
| Number of socket outlets Italian standard type Bipasso (EF009496) | 0.00 |
| Number of socket outlets Italian standard type P11 (EF009513) | 0.00 |
| Number of NEMA-outlets (EF009514) | 0.00 |
| Residual current circuit breaker (RCCB) (EF000412) | No |
| Mains filter (EF000947) | No |
| Number of other socket outlets (EF006579) | 0.00 |
| Over voltage protection (EF001332) | No |
| Nominal current (EF000001) | 16.00 A |
| Core cross section (EF000018) | 2.50 mm² |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | No |
| Surface protection (EF000139) | Untreated |
| Surface finishing (EF006569) | Glossy |
| Colour (EF000007) | Black |
| Transparent (EF006243) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Length of power cord (EF000358) | 2.00 m |
| Rotated central insert (EF001331) | Yes |
| Angle rotated central insert (EF008402) | 45° |
