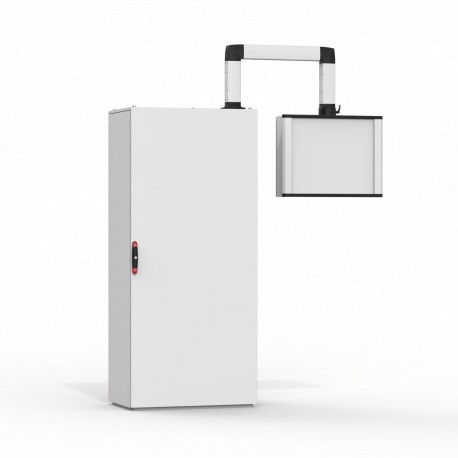

OICE506021 ELDON HMI, 500x600x210
OICE506021
506021
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Console Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The OICE506021 ELDON HMI, 500x600x210 from Eldon is a specialized human-machine interface enclosure designed to mount and protect operator terminals, touchscreens, and control panels in industrial automation setups. HMI enclosures provide ergonomic operator access while shielding display units from workshop elements.
Exact pricing, availability, and lead times are confirmed per enquiry through an RFQ.
- Height: 500 mm
- Width: 600 mm
- Depth: 210 mm
- Weight: 11.3 kg
- Material: Mild Steel; Aluminum
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- UPC: 783510524234
- EAN: 8713574187511
- Standard Packaging Quantity: 1.0000
- Packing Quantity: 1.0000
- Width (EF000008): 600.00 mm
- Height (EF000040): 500.00 mm
- Depth (EF000049): 210.00 mm
- Material (EF002169): Steel
More info
▲Features
- Material: Body and door are manufactured from 1.2 mm mild steel, front cover and handles manufactured from aluminium.
- Body: Folded and seam welded, with maximum opening. The front fitted with an aluminium front panel. Handling grips mounted to front, left and right edges.
- Rear door: Surface mounted, with 130° opening. Concealed removable hinges, with captive pin. Hinges can be mounted to allow left or right hand opening. Door profiles MMDP are available as an accessory.
- Lock: Customised lock, with double grip for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts and locks are available as an accessory.
- Protection: IP 55, IK 10.
- Finish: RAL 7035 structured powder coating. Top bottom profile RAL7016.
- Delivery: Enclosure with aluminium front panel, rear door, plastic double-bit 3 mm key and mounting accessories.
| Atributo del producto | Valor |
|---|---|
| Height | 500 mm |
| Width | 600 mm |
| Depth | 210 mm |
| Weight | 11.3 kg |
| Material | Mild Steel; Aluminum |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| UPC | 783510524234 |
| EAN | 8713574187511 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
