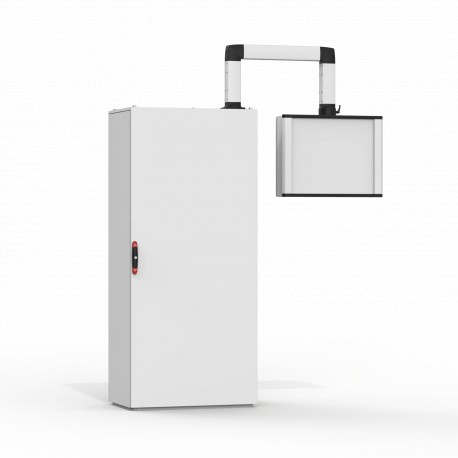

OICE406021 ELDON HMI, 400x600x210

OICE406021

406021

ELDON

1 Pcs.

HMI, 400x600x210 HMI, 400x600x210, no MP, mild steel, IP55

Automation > Enclosure/switchgear cabinet (empty)
Steel Console Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

OICE406021 ELDON HMI, 400x600x210 is an HMI (Human-Machine Interface) enclosure engineered to mount and protect operator terminals, pushbuttons, and display screens on industrial machinery. These specialized housings ensure that operators can securely interact with control systems while shielding electronics from workshop contaminants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 600.00 mm
  • Height (EF000040): 400.00 mm
  • Depth (EF000049): 210.00 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7.04
  • With mounting plate (EF000118): No
  • Pole fastening (EF009582): No
  • Number of doors (EF000122): 1.00
  • Number of locks (EF000123): 1.00
  • Pitched roof (EF009278): No
  • EMC-version (EF001062): No
  • With glazed door (EF001089): No
  • With ventilation door (EF006279): No
  • With rear door (EF007381): Yes

More info

▲

Features

  • Material: Body and door are manufactured from 1.2 mm mild steel, front cover and handles manufactured from aluminium.
  • Body: Folded and seam welded, with maximum opening. The front fitted with an aluminium front panel. Handling grips mounted to front, left and right edges.
  • Rear door: Surface mounted, with 130° opening. Concealed removable hinges, with captive pin. Hinges can be mounted to allow left or right hand opening. Door profiles MMDP are available as an accessory.
  • Lock: Customised lock, with double grip for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts and locks are available as an accessory.
  • Protection: IP 55, IK 10.
  • Finish: RAL 7035 structured powder coating. Top bottom profile RAL7016.
  • Delivery: Enclosure with aluminium front panel, rear door, plastic double-bit 3 mm key and mounting accessories.
