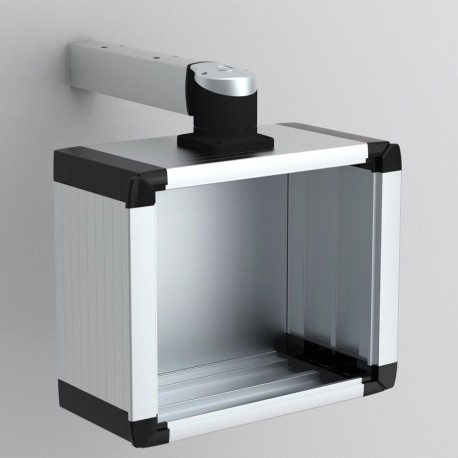

OICP355220 ELDON HMI, 354x525x200
OICP355220
355220
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Console Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The OICP355220 ELDON HMI, 354x525x200 is an ergonomic human-machine interface enclosure built to house control panels, touchscreens, and operator terminals. Operator interface enclosures protect sensitive display equipment on machinery consoles while offering comfortable viewing angles for operators.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 345mm
- Width: 525mm
- Depth: 200mm
- Weight: 8.3kg
- Material: Aluminum
- Finish: Powder Coated
- Color: Anthracite Gray
- Color Code: RAL 7016
- UPC: 783510524319
- EAN: 8713574116238
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 525.00 mm
- Height (EF000040): 354.00 mm
- Depth (EF000049): 200.00 mm
- Material (EF002169): Aluminium
More info
▲Features
- Material: Body: Al Mg Si05. Rear plate: Al Mg. Corners: AlSI 12.
- Protection: IP 65.
- Finish: Body and rear plate: anodised aluminium. Corners: RAL 7016.
- Mounting requirements: OIFP front panel is not included in the standard delivery and needs to be ordered separately.
- Delivery: Body, screwed rear plate, front plate mounting kit, and mounting accessories.
| Atributo del producto | Valor |
|---|---|
| Height | 345mm |
| Width | 525mm |
| Depth | 200mm |
| Weight | 8.3kg |
| Material | Aluminum |
| Finish | Powder Coated |
| Color | Anthracite Gray |
| Color Code | RAL 7016 |
| UPC | 783510524319 |
| EAN | 8713574116238 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
