OICP305220 ELDON HMI, 309x525x200
OICP305220
305220
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Console Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

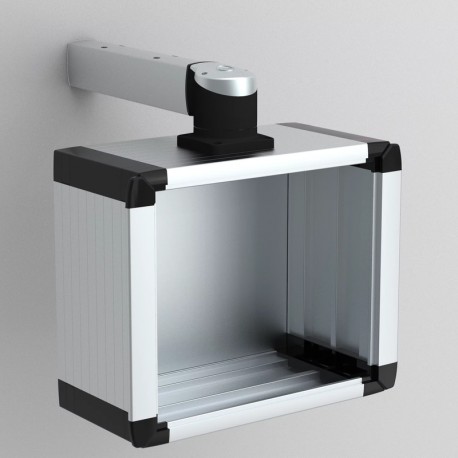

OICP305220 Eldon HMI, 309x525x200 is a specialized human-machine interface enclosure utilized to mount operator panels, touchscreens, and control pushbuttons in industrial settings. These operator interface housings provide ergonomic support and environmental protection for visualization terminals deployed in machinery automation and process control applications.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 309mm
- Width: 525mm
- Depth: 200mm
- Weight: 7.9kg
- Material: Aluminum
- Finish: Powder Coated
- Color: Anthracite Gray
- Color Code: RAL 7016
- UPC: 783510524272
- EAN: 8713574116214
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 525.00 mm
- Height (EF000040): 309.00 mm
- Depth (EF000049): 200.00 mm
- Material (EF002169): Aluminium
More info
▲Features
- Material: Body: Al Mg Si05. Rear plate: Al Mg. Corners: AlSI 12.
- Protection: IP 65.
- Finish: Body and rear plate: anodised aluminium. Corners: RAL 7016.
- Mounting requirements: OIFP front panel is not included in the standard delivery and needs to be ordered separately.
- Delivery: Body, screwed rear plate, front plate mounting kit, and mounting accessories.
| Atributo del producto | Valor |
|---|---|
| Height | 309mm |
| Width | 525mm |
| Depth | 200mm |
| Weight | 7.9kg |
| Material | Aluminum |
| Finish | Powder Coated |
| Color | Anthracite Gray |
| Color Code | RAL 7016 |
| UPC | 783510524272 |
| EAN | 8713574116214 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
