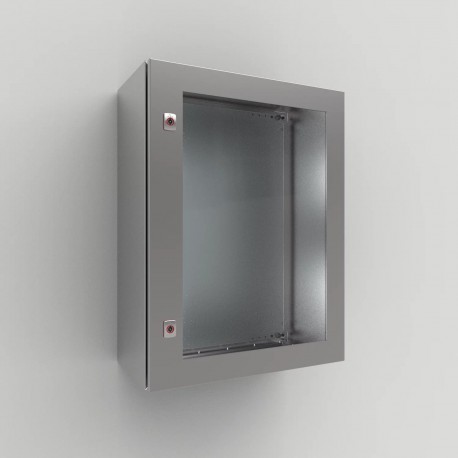

ADCS03624 ELDON Glazed door, 360x240 ADCS03624
ADCS03624
03624
ELDON
1 Pcs.
Glazed door, 360x240 ADCS03624
Transparent door, 360x240, 304 stainless steel lock double-warded 3 mm
Glazed door, 360x240, Stainless 304, 3mm double bit lock
Automation > Door/operating panel (switchgear cabinet)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: To replace the standard door, provides a clear view of the components installed inside the enclosure. The lock(s) are interchangeable with all nVent HOFFMAN's standard lock(s)
- Material: 1.5 mm AISI 304 stainless steel, 2 mm for enclosures with a height or width of 600 mm or greater and 4 mm clear safety glass
- Finish: 400 pre-grained stainless steel
- Protection: Complies with IP55, TYPE 12, 13, IK 07.
- Pack quantity: 1 door
- The glazed door allows the electrical components to be seen while the enclosure's door is closed
- The user can monitor the status of the components without the need for opening the enclosure's door maintaining the ingress protection
| Atributo del producto | Valor |
|---|---|
| Height | 360mm |
| Width | 240mm |
| Latch Quantity | 1 |
| Window Size | 219 x 83mm |
| Enclosure Material | Mild Steel |
| Product Family | Wall Mounted |
| Material | Stainless Steel 304 |
| Finish | Brushed |
| Thickness | 1.5mm |
| UPC | 783510115432 |
| EAN | 8713574174153 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Protective door |
| Version as glazed door (EF006966) | Yes |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 240.00 mm |
| Height (EF000040) | 360.00 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Stainless steel |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Stainless steel |
| Degree of protection (IP) (EF005474) | IP55 |
