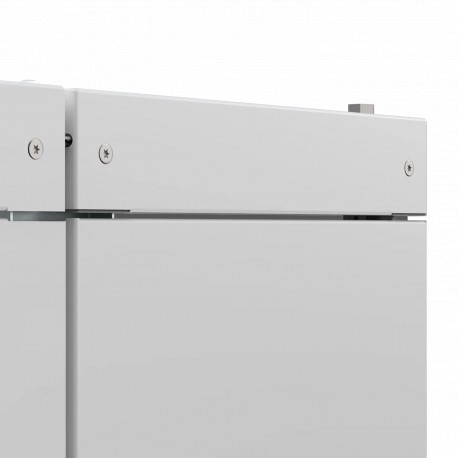

ELDON DPC0716R5 DPC0716R5 ELDON Front panel, 100+70x600 DPC0716R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DPC0716R5 ELDON Front panel, 100+70x600 DPC0716R5

DPC0716R5

10070

ELDON

1 Pcs.

Front panel, 100+70x600 DPC0716R5 Front Panel, 100+70x600, sheet steel, top and bottom. Pack of 2 units. Front panel, 100+70x600, Mild steel, top and bottom

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eldon front panel, referenced by part number DPC0716R5, functions as a structural closure element for industrial racks and free-standing floor enclosures. Such panels secure the front access areas of electrical and automation housings, protecting internal components while offering a clean, uniform exterior finish. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 104mm
  • Width: 600mm
  • Depth: 17mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.75mm
  • UPC: 783510470784
  • EAN: 8713574122598
  • Standard Packaging Quantity: 1
  • Packing Quantity: 2
  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes

More info

▲

Features

  • Description: Required to cover the remaining space at the top and bottom. Used in combination with horizontal dividers CDH/CDHK, partial doors DP, partial panels DPP and cable space door DPA.
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 44. For IP 21 delivered without gasket.
  • Mounting requirements: DPC covers 200 mm in height of the enclosure. So for a 2000 mm high enclosure when DPC is used, there is 1800 mm space left for partial doors/panels.
  • Pack quantity: Top and bottom panel with mounting accessories.
Atributo del producto Valor
Height104mm
Width600mm
Depth17mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.75mm
UPC783510470784
EAN8713574122598
Standard Packaging Quantity1
Packing Quantity2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
