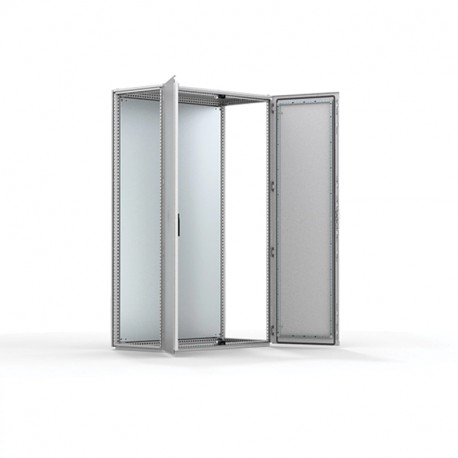

MCD20125PER5 ELDON Floor standing, 2000x1200x500
MCD20125PER5
20125
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
MCD20125PER5 ELDON Floor standing, 2000x1200x500 manufactured by Eldon functions as a large modular floor-standing enclosure designed to accommodate extensive electrical distribution and automation control configurations. Heavy-duty enclosures provide secure structural housing and environmental defense for critical plant infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 2000 mm
- Width: 1200 mm
- Depth: 500 mm
- Mounting Plate Included: No
- Door/Rear Panel: Rear panel
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.5 mm
- Door Thickness: 2 mm
- Weight: 192.8 kg
- Panel Size: 1032x410 mm
- UPC: 783510491765
- EAN: 8713574130227
- Standard Packaging Quantity: 1.0000
More info
▲Features
- Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three or four (D>600) pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP55 TYPE 12 IK 10.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame (not included for PER5 version). For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Height | 2000 mm |
| Width | 1200 mm |
| Depth | 500 mm |
| Mounting Plate Included | No |
| Door/Rear Panel | Rear panel |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.5 mm |
| Door Thickness | 2 mm |
| Weight | 192.8 kg |
| Panel Size | 1032x410 mm |
| UPC | 783510491765 |
| EAN | 8713574130227 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
