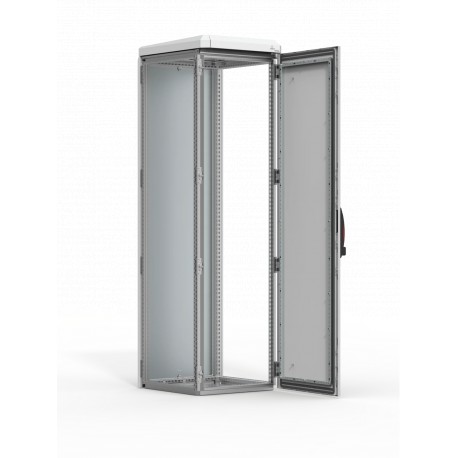

MCI18066R5 ELDON Floor standing, 1800x600x600
MCI18066R5
18066
ELDON
1 Pcs.
Floor standing, 1800x600x600
Self-supporting, 1800x600x600, combinable, 1 door, no MP, mild steel, IP55
Floor standing, combinable, 1800x600x600, 1-door, Mild steel, Zinc plated, IP55
Floor standing, 1800x600x600, Combinable enclosure, 1-door, no MP, mild steel, IP55
Automation > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The MCI18066R5 Eldon floor standing enclosure provides a robust standalone housing solution designed to securely enclose heavy electrical distribution assemblies and industrial automation gear on the factory floor.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 600.00 mm
- Height (EF000040): 1.80 mm
- Depth (EF000049): 600.00 mm
- Material (EF002169): Steel
- Surface finishing (EF006569): Powder coated
- Colour (EF000007): Grey
- RAL-number (EF000116): 7.04
- With mounting plate (EF000118): No
- Pole fastening (EF009582): No
- Number of doors (EF000122): 1.00
- Number of locks (EF000123): 1.00
- Pitched roof (EF009278): No
- EMC-version (EF001062): No
- With glazed door (EF001089): No
- With ventilation door (EF006279): No
- With rear door (EF007381): No
More info
▲Features
- Material: Frame: 1.5 mm steel plate. Door: 2 mm steel plate. Roof plate: 1.5 mm steel plate. Bottom plates: 1 mm galvanized steel. 19" profiles: 2 mm zinc plated steel
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern
- Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern
- Side panels: Supplied as an accessory
- Roof panel: Removable
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories
- Bottom plates: Consists of three or four (D>600) pieces
- 19" profiles: Provides front and side universal 19" hole pattern. Adjustable in depth by steps of 25 mm
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud
- Finish: Frame, rear door and roof plate: RAL 7035 structured powder coating. 19" profiles: zinc plated steel
- Protection: Complies with IP 55 TYPE 12 IK 10, when plain front door and side panels are fitted
- Mounting requirements: Add side panels for closed sides. Front frame can be covered with FFC or fitted with a glazed or plain door
- Delivery: Frame with fitted rear door, roof panel, bottom plates. 19" profiles at front and fixing brackets CIB. For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
