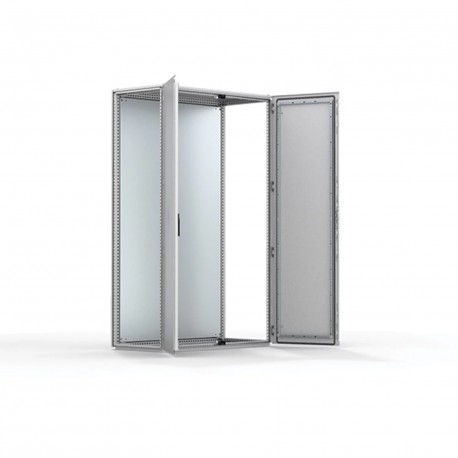

ELDON EKDS18164 EKDS18164 ELDON Floor standing, 1800x1600x400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EKDS18164 ELDON Floor standing, 1800x1600x400

EKDS18164

18164

ELDON

1 Pcs.

Floor standing, 1800x1600x400 Self-supporting, 1800x1600x400, compact, 2-door, with MP, stainless 304, IP55 Floor stand., 1800x1600x400, Compact encl., 2-door, with MP, stainless 304, IP55

Automation > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Features

  • Material: AISI 304L pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom Plates: 1.5 mm. Mounting plate: 3 mm galvanized steel.
  • Body: One piece enclosure body. Integrated depth profiles with hole pattern allowing mounting plate adjustable in depth.
  • Door: Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing. Two bottom plates are supplied for enclosures with a width of 1200 mm or greater.
  • Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is supplied, attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide enclosures. For 1600 mm wide, filler plate is included.
  • Finish: 400 pre-grained stainless steel.
  • Protection: Double door version, complies with IP 55, TYPE 12, IK 10. Individual doors with welded vertical divider, complies with IP 66, TYPE 4X, 12, IK 10.
  • Delivery: One piece body with fitted door and rear panel, bottom plates and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.
  • Rear panel: Fitted by M6 torx screws; standard facilities for rear door mounting; split rear panels in 1600 mm wide enclosures
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door; standard double-bit lock with 3 mm insert; standard inserts, cylinders, lift handles and T-handles are available as accessories
  • Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing
  • Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF
  • Mounting plate: Double folded and slides into position; adjustable in depth by steps of 25 mm; mounting plate is supplied, attached on the outside of the enclosure packaging; fitted inside for 1600 mm wide enclosures; for 1600 mm wide, filler plate is included
  • Protection: Double door version, complies with IP 55 TYPE 12 IK 10; individual doors with welded vertical divider, complies with IP 66 TYPE 4X, 12 IK 10
  • Delivery: One piece body with fitted door and rear panel, bottom plates and mounting plate, including door earthing studs; delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal; mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable
Atributo del producto Valor
Height (H)1800mm
Width (W)1600mm
Depth (D)400mm
MaterialStainless Steel 304
Panel Size1694 x 1494mm
Weight216kg
FinishBrushed
Body Thickness1.5mm
Door Thickness2mm
UPC783510477639
EAN8713574192072
Standard Packaging Quantity1
Packing Quantity1

ETIM for EKDS18164 Cabinets and enclosures (EC000261)
Feature Name Feature Value
Width (EF000008) 1.60 mm
Height (EF000040) 1.80 mm
Depth (EF000049) 400.00 mm
Material (EF002169) Stainless steel
Material quality (EF001257) Stainless steel 304 (V2A)
Surface finishing (EF006569) Untreated
Colour (EF000007) Stainless steel
RAL-number (EF000116)
Freestanding (EF020363)
Floor standing wall model (EF015208)
Suitable for wall mounting (EF000664)
Corner model (EF020814)
Intermediate mounting (EF022994)
Couplable (EF001229)
With mounting plate (EF000118) true
Mounting plate depth-adjustable (EF006054) true
Suitable for wall built-in (EF007536)
Pole fastening (EF009582) false
Number of doors (EF000122) 2.00
Number of locks (EF000123) 1.00
Suitable for metrical mounting (EF005823)
Pitched roof (EF009278) false
EMC-version (EF001062) false
With glazed door (EF001089) false
With ventilation door (EF006279) false
With rear door (EF007381) false
Impact strength (EF004293) IK10
Degree of protection (IP) (EF005474) IP55
Degree of protection (NEMA) (EF011959) 12
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) None W
Max. permissible load of the enclosure according to IEC 62208 (EF014987) None N
Max. permissible load of the door(s) according to IEC 62208 (EF014988) None N
Max. permissible load of the mounting plate according to IEC 62208 (EF014989) None N
