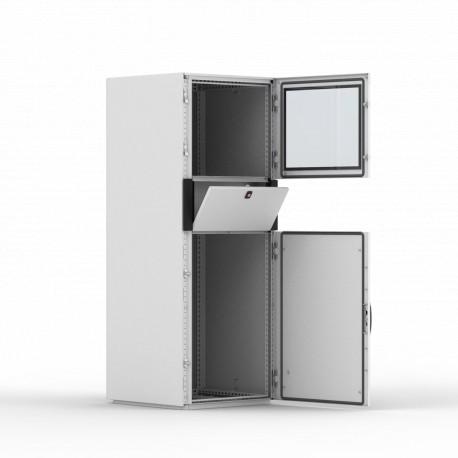

ELDON MCM16068 MCM16068 ELDON Floor standing, 1600x600x800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCM16068 ELDON Floor standing, 1600x600x800

MCM16068

16068

ELDON

1 Pcs.

Floor standing, 1600x600x800 Self-supporting, 1600x600x800, compact, 1-door, no MP, mild steel, IP44 Floor standing, 1600x600x800, Compact enclosure, 1-door, no MP, mild steel, IP44

Automation > Enclosure/switchgear cabinet (empty)
Steel Console Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed for robust facility deployments, this Eldon MCM16068 floor standing enclosure organizes and secures primary electrical distribution components. Large floor-standing cabinets provide structured interior mounting capacity for complex industrial control systems and power management architecture.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (H): 1600mm
  • Width (W): 600mm
  • Depth (D): 800mm
  • Weight: 112.5kg
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Grey
  • Color Code: RAL 7035
  • Door Thickness: 2mm
  • UPC: 783510493813
  • EAN: 8713574093300
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Width (EF000008): 600.00 mm
  • Height (EF000040): 1.60 mm
  • Depth (EF000049): 800.00 mm

More info

▲

Features

  • Material: Frame: 1.5 mm steel plate. Roof and side panels: 1.35 mm steel plate. Doors: 2 mm steel plate. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • "Door: Mounted with two hinges per door. Top door with safety glass. Viewing area for 14""- 21""monitor. Two C21323 locks for the top door, and espagnolette two point locking system, with standard 3 mm double-bit lock for the bottom door."
  • Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame, with 25 mm hole pattern. Espagnolette four point locking system, with standard 3 mm double-bit lock.
  • Keyboard panel: Vertical opening keyboard panel. Sliding mouse pad, allowing left or right hand use. Max keyboard dimensions: 470 × 190 × 45 mm. C21323 lock.
  • Bottom plates: Consists of three or four (D> 600) pieces.
  • Finish: Two tone finish. Doors, side panels, roof and frame in RAL 7035 structured powder coating. Keyboard side panels and monitor door top cover in RAL 7015 structured powder coating. Other colour schemes optional.
  • Features: Special design of roof and side panels for theft security. All panels are only accessible when the doors are unlocked. Your own company name can be inserted in the top cover (option).
  • Protection: IP 44, IK 10. With keyboard tray opened, reduces to IP 30.
  • Mounting requirements: Equipment shelves need to be added.
  • Delivery: Frame with fitted rear door, side panels, roof panel, monitor door, keyboard panel, bottom plates and monitor shelf, with clamps to fix the monitor. Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.
Atributo del producto Valor
Height (H)1600mm
Width (W)600mm
Depth (D)800mm
Weight112.5kg
MaterialMild Steel
FinishPowder Coated
ColorLight Grey
Color CodeRAL 7035
Door Thickness2mm
UPC783510493813
EAN8713574093300
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
