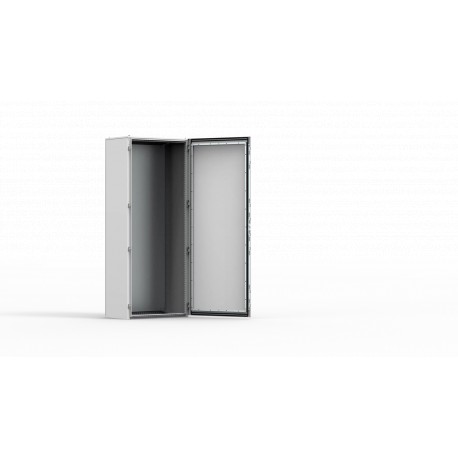

EKSS16064 ELDON Floor standing, 1600x600x400
EKSS16064
16064
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
EKSS16064 Eldon floor standing, 1600x600x400 is a tall stainless steel industrial enclosure built to house electrical control gear, PLCs, and instrumentation in corrosive environments. Freestanding stainless steel cabinets provide secure, weather-resistant housing for critical automation infrastructure in processing plants.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (H): 1600mm
- Width (W): 600mm
- Depth (D): 400mm
- Material: Stainless Steel 304
- Panel Size: 1494 x 494mm
- Weight: 84kg
- Finish: Brushed
- Body Thickness: 1.5mm
- Door Thickness: 2mm
- UPC: 783510478322
- EAN: 8713574191846
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 600.00 mm
- Height (EF000040): 1.60 mm
- Depth (EF000049): 400.00 mm
More info
▲Features
- Material: AISI 304 pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom plate: 1.5 mm. Mounting plate: 3 mm galvanized steel.
- Body: One piece enclosure body. Integrated depth profiles with hole pattern, allowing mounting plate adjustable in depth.
- Door: Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Lock: External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
- Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.
- Finish: 400 pre-grained stainless steel.
- Protection: Complies with IP 66, TYPE 4X, 12, IK 10.
- Delivery: One piece body with fitted door, bottom plate and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing
- Mounting plate: Double folded and slides into position; adjustable in depth by steps of 25 mm with the MPD02 accessory; mounting plate is supplied, attached on the outside of the enclosure packaging
- Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF
- Delivery: One piece body with fitted door, bottom plate and mounting plate, including door earthing studs; delivered on a pallet which is identical to the width of the enclosure; mounting plate is attached to the outside of the enclosure packaging; all the packing material is recyclable
| Atributo del producto | Valor |
|---|---|
| Height (H) | 1600mm |
| Width (W) | 600mm |
| Depth (D) | 400mm |
| Material | Stainless Steel 304 |
| Panel Size | 1494 x 494mm |
| Weight | 84kg |
| Finish | Brushed |
| Body Thickness | 1.5mm |
| Door Thickness | 2mm |
| UPC | 783510478322 |
| EAN | 8713574191846 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
