View larger
Images are for illustrative purposes only. Please refer to data sheet for details

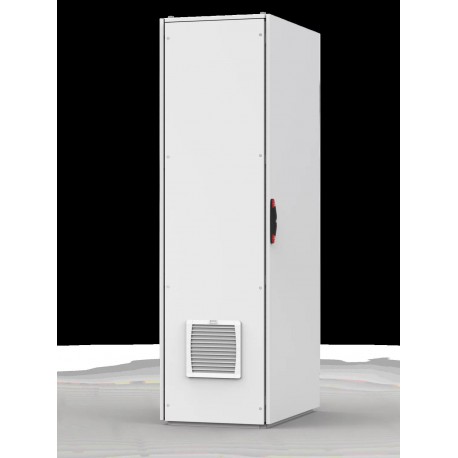

EFP200-115R5 ELDON Filter Fan Air flow 64 m3/h EFP200-115R5
EFP200-115R5
200115
ELDON
1 Pcs.
Filter Fan Air flow 64 m3/h EFP200-115R5
Fan with filter 64 m3/h, 115 V, outdoor, IP55
Filter Fan Air flow 64 m3/h, 115V, Outdoor, IP55
Automation > Ventilator (switchgear cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: Filter fan for forced ventilation. nVent HOFFMAN filter fans save time on installation as they are installed with a click-in system without screws. The hinged front cover can be easily opened for quick and easy filter replacement. The airflow direction and the connection position can easily be changed. The new filter mat gives higher air flow and longer life, with a low pressure drop, because of special construction. The UV resistance of the housing makes it the best option for outdoor applications.
- Material: Front cover manufactured from injection-moulded thermoplastic, self-extinguishing, UL94V0. UV resistance.
- Temperature range: -40 °C to +55 °C.
- Protection: IP 55 TYPE 12.
- Finish: RAL 7035.
- Pack quantity: One fan with filter.
| Atributo del producto | Valor |
|---|---|
| Airflow Volume, With Filter | 40/46m³/h |
| Aiflow Volume, Without Filter | 56/64m³/h |
| Nominal Voltage | 115V |
| Height | 145mm |
| Width | 145mm |
| Depth | 75mm |
| Cutout Size | 125 x 125mm |
| Nominal Current | 0.24/0.23A |
| Protection Rating | IP55; NEMA Type 12 |
| Material | Thermoplastic |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Frequency | 50/60 HzHz |
| Connection Type | Terminal Strip |
| Noise Level | 44dB(A) |
| Weight | 0.8kg |
| UPC | 783510476137 |
| EAN | 8713574161429 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Number of fans (EF000928) | 1.00 |
| Operating voltage AC 60 Hz (EF008207) | 115.00 V |
| Voltage type (EF000187) | AC |
| Built as slide-in ventilator (EF007126) | Yes |
| Air circulator (EF007516) | No |
| Roof ventilator (EF007099) | No |
| With filter (EF006013) | Yes |
| Volume flow, freeblowing (EF007173) | 64.00 m³/h |
| Rated power (EF007051) | 20.00 W |
| EMC-version (EF001062) | No |
| Degree of protection (IP) (EF005474) | IP55 |
| Mounting method (EF000003) | Snap mounting |
| Suitable for 19 inch rack mounting (EF000337) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7.04 |
| Width (EF000008) | 145.00 mm |
| Height (EF000040) | 145.00 mm |
| Depth (EF000049) | 75.00 mm |
