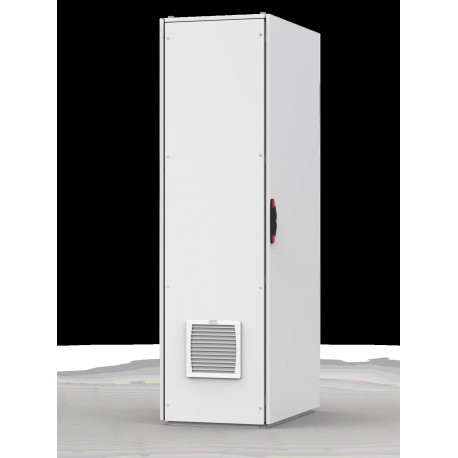

EF250-24R5 ELDON Filter Fan Air flow 156 m3/h EF250-24R5
EF250-24R5
25024
ELDON
1 Pcs.
Automation > Ventilator (switchgear cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eldon filter fan air flow 156 m3/h (part number EF250-24R5) forces cooling airflow through electrical enclosures to prevent heat concentrations around automation controllers and power supplies. Reliable cabinet ventilation extends component operating life and ensures system stability.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Aiflow Volume, Without Filter: 125/138m³/h
- Airflow Volume, With Filter: 93/102m³/h
- Airflow: 156m³/h
- Height: 252mm
- Width: 252mm
- Depth: 98mm
- Cutout Size: 223 x 223mm
- Voltage DC: 24V
- Protection Rating: IP54
- NEMA Type: 12
- Material: Thermoplastic
- Finish: Smooth
- Color: Light Gray
- Color Code: RAL 7035
- Nominal Current: 0.2A
- ConnectionType: Spring Type
- Noise Level: 40dB(A)
More info
▲Features
- Description: Filter fan for forced ventilation. nVent HOFFMAN filter fans save time on installation as they are installed with a click-in system without screws. The hinged front cover can be easily opened for quick and easy filter replacement. The airflow direction and the connection position can easily be changed.
- Material: Front cover manufactured from injection-moulded thermoplastic, self-extinguishing, UL94V0.
- Temperature range: -40 °C to +55 °C.
- Protection: IP 54, TYPE 12.
- Finish: RAL 7035.
- Pack quantity: One fan with filter.
- The filter fan is reliable due to its high quality motor, as well as being easy to install
- Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation
- The click-in feature reduces the customer's labour cost due to the ease of installation
- The filter fan should be installed together with at least one exhaust filter, EFA
- Bearing Type: Sleeve
| Atributo del producto | Valor |
|---|---|
| Aiflow Volume, Without Filter | 125/138m³/h |
| Airflow Volume, With Filter | 93/102m³/h |
| Airflow | 156m³/h |
| Height | 252mm |
| Width | 252mm |
| Depth | 98mm |
| Cutout Size | 223 x 223mm |
| Voltage DC | 24V |
| Protection Rating | IP54; NEMA Type 12 |
| Material | Thermoplastic |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Nominal Current | 0.2A |
| Connection Type | Spring Type |
| Noise Level | 40dB(A) |
| Weight | 1.4kg |
| UPC | 783510474713 |
| EAN | 8713574132641 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
