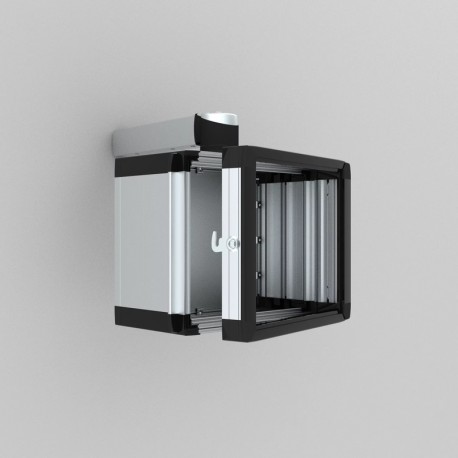

ELDON OIDES305205 OIDES305205 ELDON Extended HMI, 309x525x55 OIDES305205 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OIDES305205 ELDON Extended HMI, 309x525x55 OIDES305205

OIDES305205

305205

ELDON

1 Pcs.

Extended HMI, 309x525x55 OIDES305205 HMI extended, 309x525x55 Extended HMI, 309x525x55

Automation > Door/operating panel (switchgear cabinet)
Steel Console Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eldon extended hmi control tableau units provide ergonomic operator interface housings for mounting human-machine interaction screens and control devices on industrial machinery. Aluminum enclosures protect sensitive electronics from ambient factory hazards while offering convenient operator access.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 309 mm
  • Width: 525 mm
  • Depth: 55 mm
  • Material: Aluminum
  • Finish: Powder Coated
  • Color: Anthracite Gray
  • Color Code: RAL 7016
  • UPC: 783510524357
  • EAN: 8713574118829
  • Standard Packaging Quantity: 1.0000
  • Packing Quantity: 1.0000
  • Model (EF000010): Control tableau
  • Version as glazed door (EF006966): true
  • Width (EF000008): 525.00 mm
  • Height (EF000040): 309.00 mm
  • Depth (EF000049): 55.00 mm

More info

▲

Features

  • Description: OICP panel with hinged door extension profile. It increases the OICP panel depth in 55 mm. It has grid profiles in the door extension profile sides.
  • Material: Body and door extension profile: Al Mg Si05. Rear plate: Al Mg. Corners: Al Si12.
  • Protection: Complies with IP 65.
  • Finish: Body, door extension profile and rear plate: anodised aluminium. Corners: RAL 7016.
  • Pack quantity: OICP panel with rear plate, door extension profile, external hinges, and locking system.
Atributo del producto Valor
Height309 mm
Width525 mm
Depth55 mm
MaterialAluminum
FinishPowder Coated
ColorAnthracite Gray
Color CodeRAL 7016
UPC783510524357
EAN8713574118829
Standard Packaging Quantity1.0000
Packing Quantity1.0000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
