View larger
Images are for illustrative purposes only. Please refer to data sheet for details

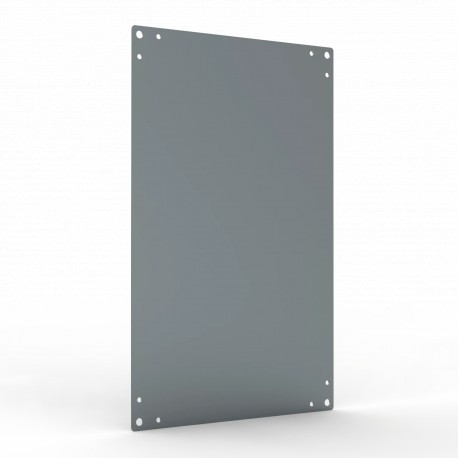

UDP75125 ELDON ARM.POL. 750x1250x320 2P, ARM.POL. 750x1250x320 2P
UDP75125
75125
ELDON
1 Pcs.
ARM.POL. 750x1250x320 2P, ARM.POL. 750x1250x320 2P
Mural, 750X1250X320, Combinable, without PM, polyester, IP65, 2 doors
Wall mounted, 750X1250X320, Combinable, no MP, polyester, IP65, 2 doors
Automation > Enclosure/switchgear cabinet (empty)
Polyester Uniplast enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Material: Fibre-glass reinforced polyester.
- Body: Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets. To a pole by use of EPF, to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In double door enclosures, sealing is ensured by a neoprene gasket.
- Door: Flush mounted door, with or without window and 100° opening. For larger sizes, a door support is supplied for easier closing.
- Lock: Premounted handle, suitable for all types of half cylinder locks (standard depth of 40 mm). Five locking points (three points in 500 mm width enclosures).
- Temperature resistance: -25 °C to 70 °C in continuous use (peak temperatures up to 130 °C).
- Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui=1000V.
- Protection: Complies with IP 65 for double door enclosures. Impact resistance IK 10.
- Approvals: CE, GOST. For further approvals, please contact nVent HOFFMAN's sales department.
- Finish: RAL 7035, precoloured raw material.
- Delivery: Enclosure with door, fixing screws for the mounting plate and wall mounting brackets. (Lock cylinder is not included in the delivery).
| Atributo del producto | Valor |
|---|---|
| Height (H) | 750 mm |
| Width (W) | 1250 mm |
| Depth (D) | 320 mm |
| Door Quantity | 2 |
| Weight | 38 kg |
| Material | Polyester |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| UPC | 783510530549 |
| EAN | 8713574100138 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 1.25 mm |
| Height (EF000040) | 750.00 mm |
| Depth (EF000049) | 320.00 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyester |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7.04 |
| Freestanding (EF020363) | |
| Floor standing wall model (EF015208) | |
| Suitable for wall mounting (EF000664) | |
| Corner model (EF020814) | |
| Intermediate mounting (EF022994) | |
| Couplable (EF001229) | |
| With mounting plate (EF000118) | false |
| Mounting plate depth-adjustable (EF006054) | |
| Suitable for wall built-in (EF007536) | |
| Pole fastening (EF009582) | false |
| Number of doors (EF000122) | 2.00 |
| Number of locks (EF000123) | 2.00 |
| Suitable for metrical mounting (EF005823) | false |
| Pitched roof (EF009278) | false |
| EMC-version (EF001062) | false |
| With glazed door (EF001089) | false |
| With ventilation door (EF006279) | false |
| With rear door (EF007381) | false |
| Impact strength (EF004293) | IK07 |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
