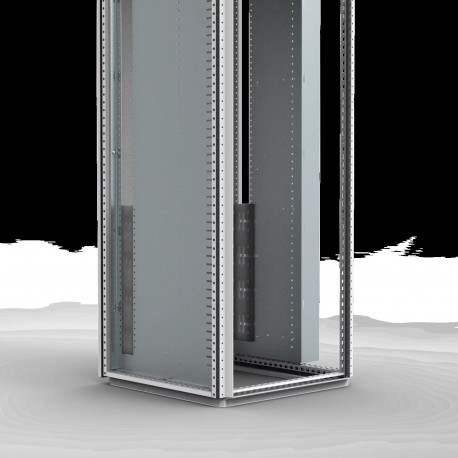

MSHS406010 ELDON Busbar support 2x(60x10) MSHS406010
MSHS406010
406010
ELDON
1 Pcs.
Automation > Accessories/spare parts for busbars
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An industrial busbar support provides robust mechanical retention and electrical isolation for heavy copper busbars inside high-current switchboards. The Eldon MSHS406010 ELDON Busbar support 2x(60x10) MSHS406010 maintains structural stability and proper phase spacing in demanding electrical enclosures.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 540mm
- Width: 95mm
- Enclosure Material: Mild Steel
- Product Family: Free-Standing
- Material: Polycarbonate
- Finish: Smooth
- UPC: 783510516970
- EAN: 8713574119901
- Standard Packaging Quantity: 1
- Packing Quantity: 1
More info
▲Features
- Description: Busbar supports up to 3600A to be mounted horizontally behind the compartments. Mounts to the internal side panels MSPS, and in the height position which we need. Supports for single or double bar per phase for bar thickness 10 mm, and width from 10 to 120 mm. Distance between bars of 20 mm.
- Material: Polycarbonate reinforced with 10% of glass material.
- Delivery: Busbar support for 3 phases and neutral, and mounting material.
- Distance between bars of 20 mm
- Material: Polycarbonate reinforced with 10% of glass material
- Delivery: Busbar support for 3 phases and neutral, and mounting material
- Horizontal main busbar support for 2 bars up to 120 x 10 mm, which can be mounted at the required height behind any system (fix, modular or plug-in)
- The standard supports are available off the shelf and have been tested according to IEC 61439
- The supports are suitable for the most common bars on the market
- Main busbars can be installed in the middle of the enclosure height, which will reduce the required busbar section
- A flexible and reliable solution that ensures procurement, design and installation can be done efficiently reducing the labour time required
- Internal side panels (MSPS) are required in order to mount the busbar supports
| Atributo del producto | Valor |
|---|---|
| Height | 540mm |
| Width | 95mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Polycarbonate |
| Finish | Smooth |
| UPC | 783510516970 |
| EAN | 8713574119901 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
