View larger
Images are for illustrative purposes only. Please refer to data sheet for details

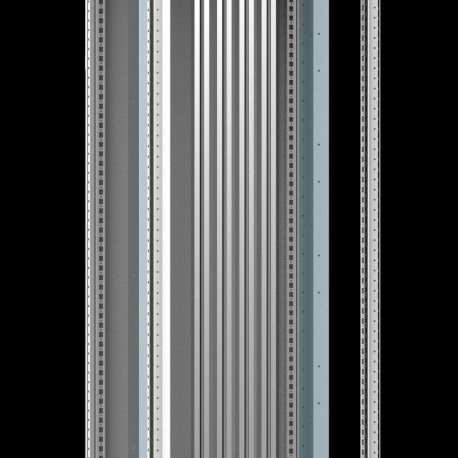

MSBS41418 ELDON Plug-in busbar, 1800 MSBS41418
MSBS41418
41418
ELDON
1 Pcs.
Plug-in busbar, 1800 MSBS41418
Busbar vert. plug-in, 1800, up to 1600A, 4 pieces. Pack of 4 units.
Plug-in busbar, 1800, 4 pieces
Automation > Busbar system for distribution boards
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: Vertical busbar to build up the plug-in system. The MSBS bars are fixed in the MSVH supports with standard bolts, washers and nuts. The rated current can be increased up to 2 x 1400A if the incoming connetion is in the middle.
- Material: Tin plated aluminium.
- Delivery: 4 pieces of busbars.
| Atributo del producto | Valor |
|---|---|
| Height | 1800 mm |
| Width | 40 mm |
| Depth | 82 mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Aluminum |
| Finish | Mill |
| Color | Unpainted |
| Mounting Plate Height | 1572 mm |
| UPC | 783510514938 |
| EAN | 8713574119796 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 4.0000 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 1.80 mm |
| Width (EF000008) | None mm |
| Depth (EF000049) | None mm |
| Number of poles (EF001391) | |
| Busbar distance (EF002638) | None mm |
| Rail height (EF002639) | None mm |
| Busbar thickness (EF002640) | None mm |
| Rated current (EF000227) | None A |
| Short-circuit breaking capacity (Icw) (EF002562) | None kA |
| Material (EF002169) | |
| Surface protection (EF000139) |
