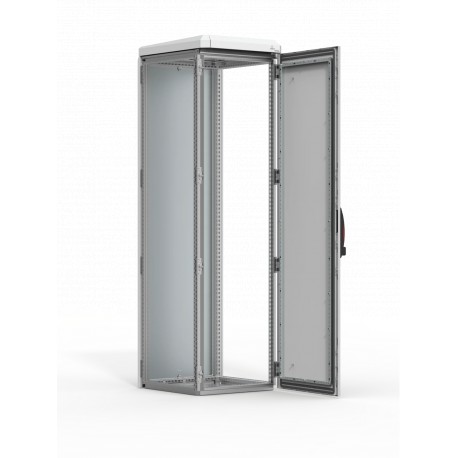

ECOM16086 ELDON Self-supporting, 1600x800x600, Wardrobe combinable, no plate, aluminium, IP66
ECOM16086
16086
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Floor Standing Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured from corrosion-resistant aluminum with a brushed finish, the Eldon ECOM16086 self-supporting wardrobe cabinet offers robust modular housing. Combinable enclosures are typically implemented in industrial automation networks where multiple vertical panel sections must align seamlessly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 1600mm
- Width (W): 800mm
- Depth (D): 600mm
- Material: Aluminum
- Finish: Brushed
- Thickness (T): 2mm
- UPC: 783510474089
- EAN: 8713574226081
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 800.00 mm
- Height (EF000040): 1.60 mm
- Depth (EF000049): 600.00 mm
- Material (EF002169): Aluminium
- Surface finishing (EF006569): Powder coated
- Colour (EF000007): Grey
More info
▲Features
- Material: Aluminium ALMg3. Door: 2 mm. Rear panel: 2 mm. Rain hood: 2 mm. Bottom plate: 2 mm.
- Frame: AISI 304L pre-grained stainless steel. Frame: 1.5 mm. Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
- Door: Double walled with top and bottom ventilation openings, allowing air flow. Mounted with concealed hinges, allowing left or right hand opening.
- Rear panel: Double walled with top and bottom ventilation openings allowing air flow. Fastened from the inside. Standard facilities for rear door mounting.
- Rainhood: Sloped rainhood with integrated rain gutter and ventilation channels around the perimeter.
- Side panels: Supplied as an accessory.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard lift handle with security lock.
- Earthing: Internal panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating 100% polyester.
- Protection: Complies with IP 66 TYPE 4X, 12 IK 10, when bottom plate is fitted.
- "Approvals: Climatic and Chemically active substances resistance according to EN61969-3 ""Mechanical structures for electronic equipment. Outdoor enclosures”."
- Delivery: Frame with fitted door and lifthandle, rear panel and rain hood. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable. Mounting plate and side panels are not included in the standard delivery.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 1600mm |
| Width (W) | 800mm |
| Depth (D) | 600mm |
| Material | Aluminum |
| Finish | Brushed |
| Thickness (T) | 2mm |
| UPC | 783510474089 |
| EAN | 8713574226081 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
