View larger
Images are for illustrative purposes only. Please refer to data sheet for details

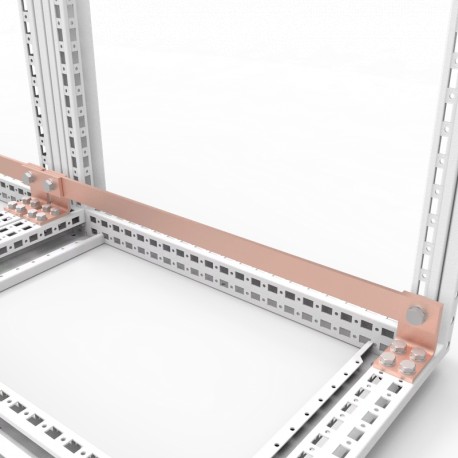

ECB048010 ELDON Bar Cu ground 80x10, copper Bar for grounding. Pack of 2 units.
ECB048010
048010
ELDON
1 Pcs.
Bar Cu ground 80x10, copper Bar for grounding. Pack of 2 units.
Earthing copper bar 80x10, Copper bars for earthing
Automation > Earthing rail for distribution board
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
| Atributo del producto | Valor |
|---|---|
| Height | 80 mm |
| Width | 10 mm |
| Depth | 400 mm |
| Product Family | IEC General Accessories |
| Material | Copper |
| Finish | Mill |
| Color | Unpainted |
| UPC | 783510473242 |
| EAN | 8713574231252 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 2.0000 |
| Feature Name | Feature Value |
|---|---|
| Number of connections (EF000126) | 16.00 |
| Rated current (EF000227) | 1.60 A |
| Material (EF002169) | Copper |
| Surface of the contact rail (EF004227) | Untreated |
| Rail length (EF010935) | None mm |
| Rail width (EF003704) | None mm |
| Busbar thickness (EF002640) | None mm |
| Clearance from back plate (EF011973) | 20.00 mm |
| Mounting method (EF000003) | Direct mounting |
| Horizontal mounting (EF006051) | |
| Vertical mounting (EF024092) | |
| Insulated mounting (EF001588) | false |
| Max. tightening torque (EF011415) | None Nm |
| Connection size, connection facility (EF020294) |
