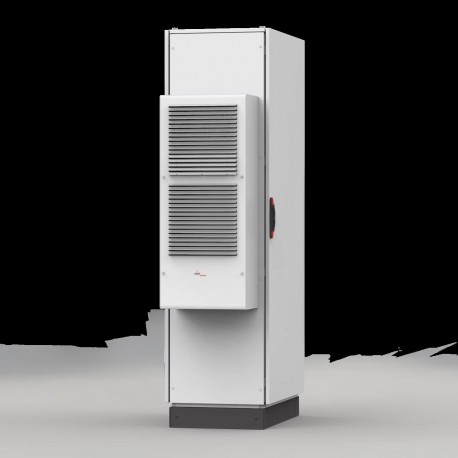

ELDON CUVN21004 CUVN21004 ELDON Cooling unit 2100W CUVN21004 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CUVN21004 ELDON Cooling unit 2100W CUVN21004

CUVN21004

21004

ELDON

1 Pcs.

Cooling unit 2100W CUVN21004 Refrigerators, 2100 W, 400 V, sheet steel, IP54, NEMA 12 Cooling unit 2100W, 400V, Mild steel, IP54, NEMA 12

Automation > Air conditioner (switchgear cabinet)
General Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

CUVN21004 ELDON Cooling unit 2100W CUVN21004 is a high-capacity thermal management unit deployed on industrial enclosures to dissipate substantial heat loads generated by heavy-duty automation electronics. Such cooling units prevent component degradation by actively extracting warm air and circulating conditioned air within the cabinet housing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 1005 mm
  • Width: 409 mm
  • Depth: 263 mm
  • Material: Mild Steel
  • Finish: Plated
  • Color: Unpainted
  • Phase Quantity: 3
  • Frequency: 50/60 Hz
  • UPC: 783510462680
  • EAN: 8713574211018
  • Standard Packaging Quantity: 1.0000
  • Packing Quantity: 1.0000
  • Operating voltage AC 50 Hz (EF008206): 400.00 V
  • Operating voltage AC 60 Hz (EF008207): 460.00 V
  • Operating voltage DC (EF008208): None V
  • Voltage type (EF000187): AC

More info

▲

Features

  • Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
  • Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing Smart energy management reduces the cooling units energy consumption by up to 23%
  • The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
  • The smart energy management and ease of installation will reduce both operational and installation costs
  • To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
  • Once installed, the door switch will turn the cooling unit off, once the door is opened
  • Voltage: 200-235 V
  • Alternating current frequency: 50~60 Hz
  • Power of the fan: 22 Watt
  • Consumption current: 0.28A / 0.56A
  • Air circulation: 4.4 / 8.8 m³/min
  • Measurement limits: -50 ºC ... +125 ºC
  • Measurement accuracy: +/-0.5ºC
  • Working temperature: 0...+50ºC
  • Relative air humidity (air temp. +35C): 80%
  • Noise level: 35 decibel
  • Lifetime: 30.000 hours
  • Switch: No
  • Thermostat: Yes
  • Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m); version with 4 fans is supplied with a depth fixing bracket
Atributo del producto Valor
Height1005 mm
Width409 mm
Depth263 mm
MaterialMild Steel
FinishPlated
ColorUnpainted
Phase Quantity3
Frequency50/60 Hz
UPC783510462680
EAN8713574211018
Standard Packaging Quantity1.0000
Packing Quantity1.0000
