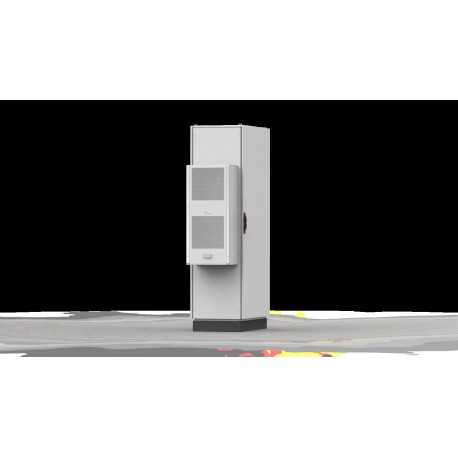

CUVN15004 ELDON Cooling unit 1500W CUVN15004
CUVN15004
15004
ELDON
1 Pcs.
Automation > Air conditioner (switchgear cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-capacity thermal control, the CUVN15004 ELDON Cooling unit 1500W CUVN15004 dissipates internal heat loads from demanding electrical enclosure installations. Industrial cooling systems are routinely integrated into automation control panels to ensure consistent operating temperatures for sensitive PLCs and drives. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 1005mm
- Width: 409mm
- Depth: 263mm
- Material: Mild Steel
- Finish: Plated
- Phase Quantity: 3
- Frequency: 50/60 HzHz
- UPC: 783510462581
- EAN: 8713574210981
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Operating voltage AC 50 Hz (EF008206): 400.00 V
- Operating voltage AC 60 Hz (EF008207): 460.00 V
- Operating voltage DC (EF008208): None V
- Voltage type (EF000187): AC
- With temperature control (EF000745): true
More info
▲Features
- Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
- Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing Smart energy management reduces the cooling units energy consumption by up to 23%
- The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
- The smart energy management and ease of installation will reduce both operational and installation costs
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
- Once installed, the door switch will turn the cooling unit off, once the door is opened
- Voltage: 200-235 V
- Alternating current frequency: 50~60 Hz
- Power of the fan: 22 Watt
- Consumption current: 0.28A / 0.56A
- Air circulation: 4.4 / 8.8 m³/min
- Measurement limits: -50 ºC ... +125 ºC
- Measurement accuracy: +/-0.5ºC
- Working temperature: 0...+50ºC
- Relative air humidity (air temp. +35C): 80%
- Noise level: 35 decibel
- Lifetime: 30.000 hours
- Switch: No
- Thermostat: Yes
- Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m); version with 4 fans is supplied with a depth fixing bracket
| Atributo del producto | Valor |
|---|---|
| Height | 1005mm |
| Width | 409mm |
| Depth | 263mm |
| Material | Mild Steel |
| Finish | Plated |
| Phase Quantity | 3 |
| Frequency | 50/60 HzHz |
| UPC | 783510462581 |
| EAN | 8713574210981 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
