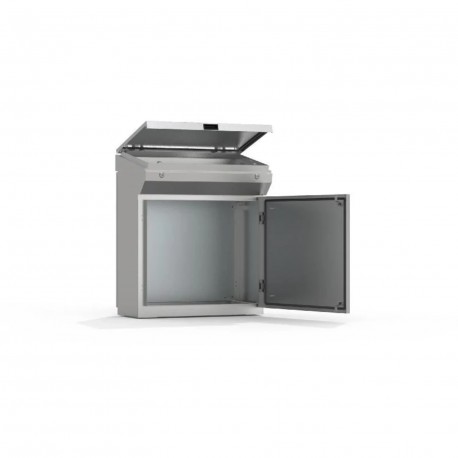

MPGS08-316 ELDON Console, 985x800x400
MPGS08-316
08316
ELDON
1 Pcs.
Automation > Desk system (switchgear cabinet)
Steel Console Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built from corrosion-resistant material, the Eldon MPGS08-316 MPGS08-316 ELDON Console, 985x800x400 delivers dependable freestanding enclosure performance. These rugged consoles protect critical automation controllers and electrical switchgear in demanding processing plants, washdown areas, and outdoor industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 985mm
- Width: 800mm
- Depth: 400mm
- Panel Size: 790 x 699mm
- Max Mounting Depth: 357.5mm
- Weight: 73.72kg
- Material: Stainless Steel 316
- Finish: Brushed
- Body Thickness: 2mm
- Door Thickness: 2mm
- Protection Rating: IP66
- NEMA Type 4x
- NEMA Type 12
- NEMA Type 13
- IK10
- UPC: 783510512842
- EAN: 8713574192652
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Component of the desk system (EF006789): Desk console
More info
▲Features
- Material: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.
- Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
- Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges, on top edge, allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 wide base units.
- Mounting plate: Standard mounting plate in base unit.
- Lock: Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks.
- Cable inlet: Bottom opening for cable access. Bottom plate for cable glanding supplied as standard.
- Earthing: M8 threaded studs on body, door, top panel and rear panel.
- Finish: 400 pre-grained stainless steel.
- Protection: Single door: IP 66, TYPE 4X, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
- Delivery: Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.
| Atributo del producto | Valor |
|---|---|
| Height | 985mm |
| Width | 800mm |
| Depth | 400mm |
| Panel Size | 790 x 699mm |
| Max Mounting Depth | 357.5mm |
| Weight | 73.72kg |
| Material | Stainless Steel 316 |
| Finish | Brushed |
| Body Thickness | 2mm |
| Door Thickness | 2mm |
| Protection Rating | IP66; NEMA Type 4x; NEMA Type 12; NEMA Type 13; IK10 |
| UPC | 783510512842 |
| EAN | 8713574192652 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
