View larger
Images are for illustrative purposes only. Please refer to data sheet for details
MPGS12-316 ELDON Console, 985x1200x400
MPGS12-316
12316
ELDON
1 Pcs.
Console, 985x1200x400
Console, 985x1200x400, compact, with MP, stainless steel grade 316, IP55
Console, 985x1200x400, Compact enclosure, with MP, stainless 316, IP55
Automation > Desk system (switchgear cabinet)
Steel Console Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Material: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.
- Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.

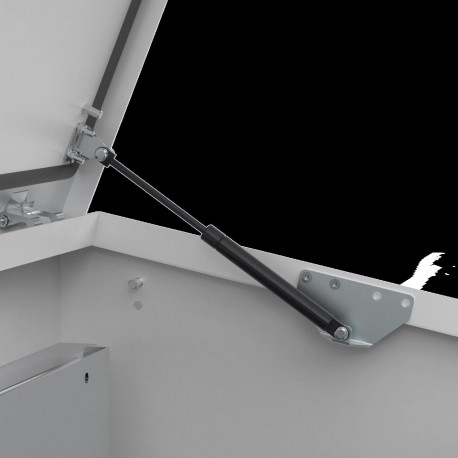

- Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges, on top edge, allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 wide base units.
- Mounting plate: Standard mounting plate in base unit.
- Lock: Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks.
- Cable inlet: Bottom opening for cable access. Bottom plate for cable glanding supplied as standard.
- Earthing: M8 threaded studs on body, door, top panel and rear panel.
- Finish: 400 pre-grained stainless steel.
- Protection: Single door: IP 66, TYPE 4X, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
- Delivery: Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.
- M8 threaded studs on body, puerta, top panel and rear panel
| Atributo del producto | Valor |
|---|---|
| Height | 985 mm |
| Width | 1200 mm |
| Depth | 400 mm |
| Panel Size | 790 x 1099 mm |
| Max Mounting Depth | 357.5 mm |
| Weight | 90.67 kg |
| Material | Stainless Steel 316 |
| Finish | Brushed |
| Color | Unpainted |
| Body Thickness | 2 mm |
| Door Thickness | 2 mm |
| Protection Rating | IP55; NEMA Type 12; NEMA Type 13; IK10 |
| UPC | 783510513016 |
| EAN | 8713574192669 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Component of the desk system (EF006789) | Desk console |
| Width (EF000008) | 1.20 mm |
| Height (EF000040) | 985.00 mm |
| Depth (EF000049) | 400.00 mm |
| Material (EF002169) | Stainless steel |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | |
| Number of doors (EF000122) | 2.00 |
| Degree of protection (IP) (EF005474) | IP55 |
| Degree of protection (NEMA) (EF011959) | 12 |
