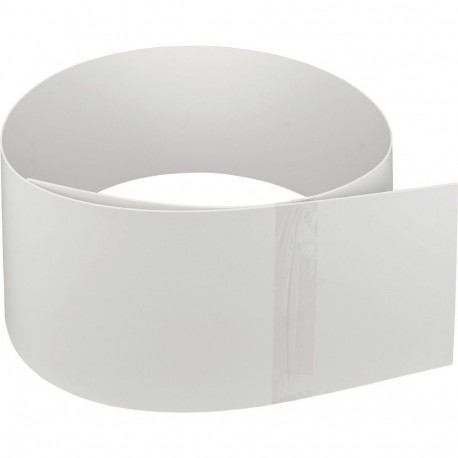

EATON - MOELLER XVTL-SCH205 XVTL-SCH205 144018 EATON ELECTRIC Segregation, vertical und horizontal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XVTL-SCH205 144018 EATON ELECTRIC Segregation, vertical und horizontal

XVTL-SCH205

144018

EATON - MOELLER

1 Pcs.

Segregation, vertical und horizontal Vertical and horizontal partition, plastic, incl. fixing material, height 2000mm, depth 500 mm, for XVTL

Automation > Separation plate for meter-/distribution boards
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for comprehensive switchgear organization, this XVTL-SCH205 144018 EATON ELECTRIC Segregation, vertical und horizontal provides dual-axis internal partitioning for industrial enclosure systems. Multi-directional segregation plates allow engineers to configure complex internal layouts with separated compartments for different electrical devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1850 mm
  • Width (EF000008): 2 mm
  • Material (EF002169): Plastic
  • Surface protection (EF000139): Primed
  • With connector openings (EF001132): Yes
  • Arc-proof (EF009409): No

More info

▲
Technical data ETIM 7.0
Distribution boards (EG000023) / Separation plate for meter-/distribution boards (EC000770)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Separation plate for meter-/distribution boards ([email protected] [ACN393011])
Height
mm 1850
Width
mm 350
Material
Plastic
Surface protection
Primed
With connector openings
Yes
Arc-proof
No
