EATON - MOELLER XLC2033 XLC2033 187935 Y7-187935 EATON ELECTRIC Frame corner H 2000 P 300 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLC2033 187935 Y7-187935 EATON ELECTRIC Frame corner H 2000 P 300

XLC2033

187935

Y7-187935

EATON - MOELLER

1 Pcs.

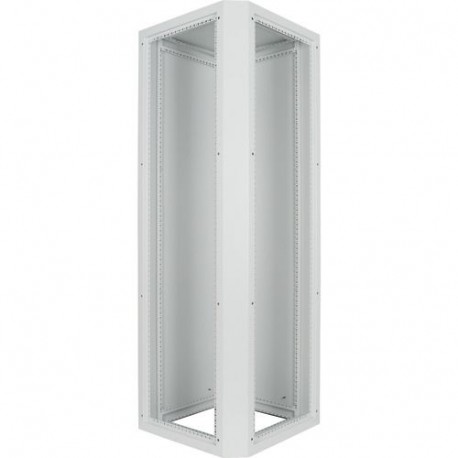

Frame corner H=2000 P=300 XLC2033 XLC2033 - Corner frame, steel, grey, HxWxD=2000x350x350mm, grey Corner frame, steel, grey, HxWxD=2000x350x350mm, grey, inlcluding top plate and side walls in RAL 7035 structure finish

Automation > Enclosure/switchgear cabinet (empty)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
187935
Model Code
XLC2033
EAN
4015081856206
Product Length/Depth
350 mm
Product Height
2000 mm
Product Width
350 mm
Product Weight
48 kg
Compliances
RoHS conform

Product specifications

Features
Connectable
EMC-version
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Not applicable.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Not applicable.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 690 V AC
10.9.3 Impulse withstand voltage
6 kV
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
Pollution degree
3
Surface finishing
Powder coating
Degree of protection
IK10
IP55
4X (NEMA)
Material quality
Other
Color
Gray
Permissible load of the mounting plate according to IEC 62208 - max
4000 N
Number of locks
0
RAL-number
7035
Material
Steel
Mounting method
Wall fastening
Overvoltage category
IV
Installation type
Floor standing wall model
Model
Corner model
Protection class
I
Number of covers/doors
0
Suitable for
Metrical mounting
Permissible load of the enclosure according to IEC 62208 - max
5000 N
Permissible load of the door(s) according to IEC 62208 - max
1000 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Number of connector holes
0

ETIM for 187935 Cabinets and enclosures (EC000261)
Feature Name Feature Value
Width (EF000008) 350 mm
Height (EF000040) 2000 mm
Depth (EF000049) 350 mm
Material (EF002169) Steel
Material quality (EF001257) Other
Surface finishing (EF006569) Powder coated
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Freestanding (EF020363) No
Floor standing wall model (EF015208) Yes
Suitable for wall mounting (EF000664) Yes
Corner model (EF020814) Yes
Intermediate mounting (EF022994) No
Couplable (EF001229) Yes
With mounting plate (EF000118) No
Mounting plate depth-adjustable (EF006054) No
Suitable for wall built-in (EF007536) No
Pole fastening (EF009582) No
With door (EF009169) No
Number of doors (EF000122) 0
With glazed door (EF001089) No
With ventilation door (EF006279) No
With rear door (EF007381) No
Number of locks (EF000123) 0
With cover (EF007965) No
Transparent cover (EF011401) No
Suitable for metrical mounting (EF005823) Yes
Pitched roof (EF009278) No
Pre-stamping (EF001039) No
EMC-version (EF001062) Yes
Impact strength (EF004293) IK10
Degree of protection (IP) (EF005474) IP55
Degree of protection (NEMA) (EF011959) 4X
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) 0 W
Max. permissible load of the enclosure according to IEC 62208 (EF014987) 5000 N
Max. permissible load of the door(s) according to IEC 62208 (EF014988) 1000 N
Max. permissible load of the mounting plate according to IEC 62208 (EF014989) 4000 N

Product Datasheet
