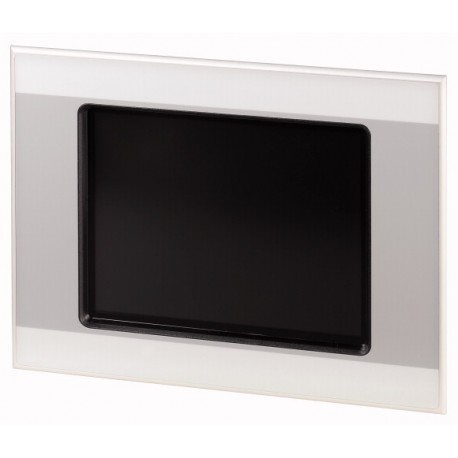

XV-440-10TVB-1-20 139906 EATON ELECTRIC Touch panel, ir, 24 V DC, 10.4z, TFTcolor, ethernet, RS232, CAN, (PL..
XV-440-10TVB-1-20
139906
EATON - MOELLER
1 Pcs.
Automation > Graphic panel
HMI Touch Terminals
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller XV-440-10TVB-1-20 touch panel delivers a wide-format graphical interface for managing industrial processes and equipment. High-resolution visualization panels are frequently installed in control rooms and machine enclosures to simplify system diagnostics and operator input.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product range: XV400 10.4"
- Function: HMI-PLC (PLC retrofitted by user)
- Display - Type: Color display, TFT
- Touch-technology: Infra-red touch
- Resolution: VGA, 640 x 480 Pixel
More info
▲Delivery program
USB device
RS232
CAN/easyNet
UL508, cUL approvals
PLC function can be fitted by user
Communications scope can be fitted by user with licenses
640 x 480 Pixel
CompactFlash card required
1 x RS232
1 x CAN
1 x USB host
1 x USB device
Laminated safety glass, non-reflective
for communication modules: 2
Technical data
640 x 480 Pixel
dimmable via software
79 x 59 logic channels
Flash (can be used for data backup): approx. 1.5 MByte available
NVRAM (retained data): approx. 32 KByte available
EPAM
XSOFT-CODESYS-2
XSOFT-CODESYS-3
XSOFT-CODESYS-3
CompactFlash card required
1 x RS232
1 x CAN
1 x USB host
1 x USB device
for communication modules: 2
Absolute with ripple: 19.2-30.0 V DC
35 V DC for a duration of < 100 ms
5 ms from undervoltage (20.4 V DC) ms
18 W for basic device + two times 4 W for communication modules + two times 3 W for USB modules
Laminated safety glass, non-reflective
(in relation to CE)
EN60079-0, EN61241-1, EN13463
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
EN 61131-2
EN 61131-2
UL 60950
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
Approvals
Proper bonding to the end-product main protective earthing termination is: Required
The following end-product enclosures are required: Fire, Electrical
The unit must be supplied via a SELV source.
The provided Ethernet Connection is only allowed to connect to inhouse networks.
