View larger
Images are for illustrative purposes only. Please refer to data sheet for details

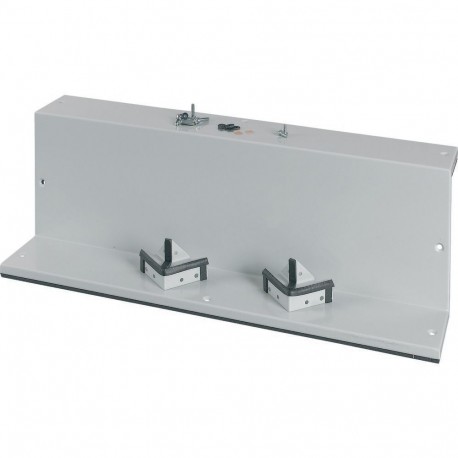

XTSZSA4 179377 Y7-179377 EATON ELECTRIC Side, double rail transition, grey
XTSZSA4
179377
Y7-179377
EATON - MOELLER
1 Pcs.
Side, double rail transition, grey
XTSZSA4
Eaton xEnergy Main LV systems LV switchgear. Side, double rail transition, grey
Enclosure side plate transition piece between openFrame, height = 2000 mm, and openFrame, height = 2000 mm, + expansion box, height = 300 mm; used to close the cabinet on the sides and on top; required only if no additional cabinets will be added on the side; sheet steel; plastic-coated; RAL 7035
Automation > Side/back panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
179377
Model Code
XTSZSA4
EAN
4015081744633
Product Length/Depth
320 mm
Product Height
208 mm
Product Width
690 mm
Product Weight
5.89 kg
Compliances
RoHS conform
Product specifications
Surface finishing
Powder coating
Color
Gray
Modular spacing
12.5 mm
Number of height units
0
RAL-number
7035
Suitable for enclosure building length/depth
320 mm
Suitable for enclosure building width
690 mm
Material
Steel
Suitable for
Side panel use
| Feature Name | Feature Value |
|---|---|
| Suitable as side panel (EF008287) | Yes |
| Suitable as rear panel (EF008288) | No |
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 690 mm |
| Suitable for enclosure building depth (EF000327) | 320 mm |
| Width (EF000008) | 690 mm |
| Height (EF000040) | 208 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
