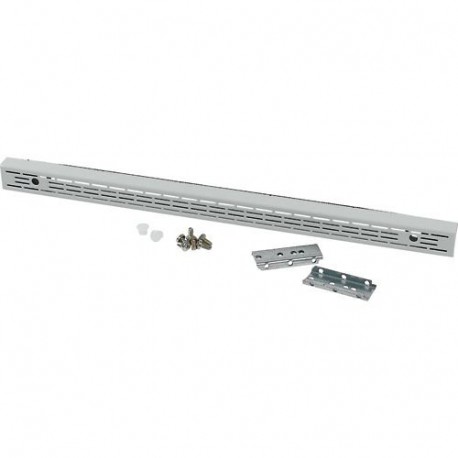

EATON - MOELLER XTSWFV3 XTSWFV3 172700 Y7-172700 EATON ELECTRIC Covered compensation-ventilated IP31 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XTSWFV3 172700 Y7-172700 EATON ELECTRIC Covered compensation-ventilated IP31

XTSWFV3

172700

Y7-172700

EATON - MOELLER

1 Pcs.

Covered compensation-ventilated IP31 XTSWFV3 Eaton xEnergy Main LV systems LV switchgear. XW - Front filler ventilated, grey XW - BBT - ventilated compensation faceplate; this faceplate is required in addition to every mounting kit in order to achieve partitioning of 75 mm

Automation > Cover / infill panel / identification strip (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller covered compensation-ventilated IP31 (XTSWFV3) acts as a specialized panel component designed to regulate airflow while maintaining structural enclosure integrity. Ventilation plates help manage internal cabinet temperatures in standard industrial electrical distribution setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Blank plate
  • Width (EF000008): 40 mm
  • Height (EF000040): 580 mm
  • Depth (EF000049): 40 mm
  • Mounting position (EF001664): Scaffold
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
172700
Model Code
XTSWFV3
EAN
4015081692514
Product Length/Depth
40 mm
Product Height
580 mm
Product Width
40 mm
Product Weight
0.9 kg
Compliances
RoHS conform

Product specifications

RAL-number
7035
Color
Gray
Material
Metal
Mounting position
Scaffold
Model
Blind plate
