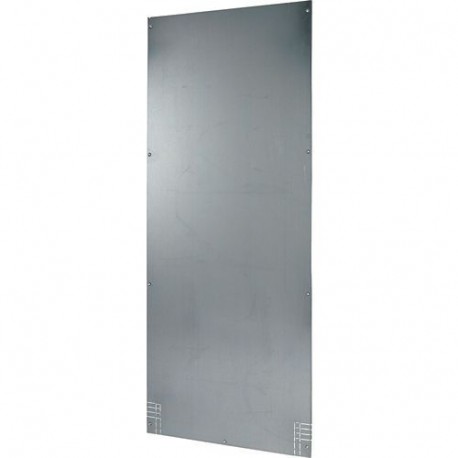

EATON - MOELLER XTPZSSZ1 XTPZSSZ1 172698 Y7-172698 EATON ELECTRIC Separation panel between whole sections View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XTPZSSZ1 172698 Y7-172698 EATON ELECTRIC Separation panel between whole sections

XTPZSSZ1

172698

Y7-172698

EATON - MOELLER

1 Pcs.

Separation panel between whole sections XTPZSSZ1 Partition between two sections, as high as section

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller separation panel between whole sections, part number XTPZSSZ1, establishes robust vertical dividers across adjacent enclosure bays in modular switchboard systems. Section partition panels maintain proper compartmentalization and arc containment between distinct functional columns.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 30 mm
  • Height (EF000040): 1753 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
172698
Model Code
XTPZSSZ1
EAN
4015081692507
Product Length/Depth
682 mm
Product Height
1753 mm
Product Width
30 mm
Product Weight
29.416 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
0 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 2a
Internal separation form 3b
Internal separation form 4b
Internal separation form 2b
